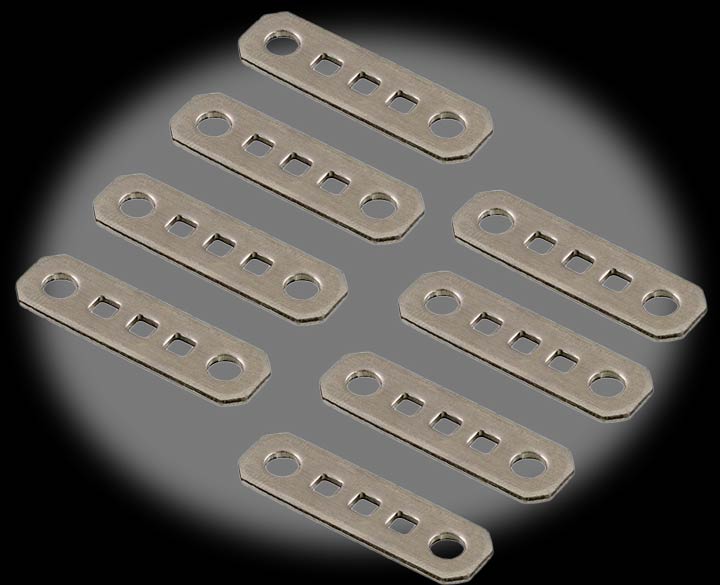

VEX-275-1065 VEX Robotics Drive Shaft Bar Lock, 8-pack <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Metal version of the shaft locking part. Three locations for square shafts. Made from cold rolled steel, 0.046" thick, zinc plated.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Technical Info </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Material Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cold Rolled Steel per ASTM A-1008 CS Type B (approx 40ksi tensile strength)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Material Thickness</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.046" (1.17mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Material Finish</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Zinc Plated</font></td>
</tr>
<tr>

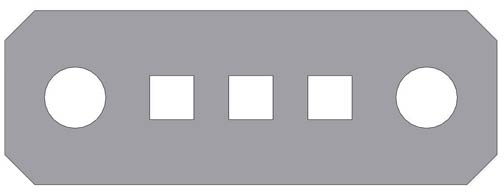

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Hole Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">(2) 0.182 square (Vex standard)<br />
(3) 0.125 square (Mates with Drive Shafts)</font></td>
</tr>
</table>
