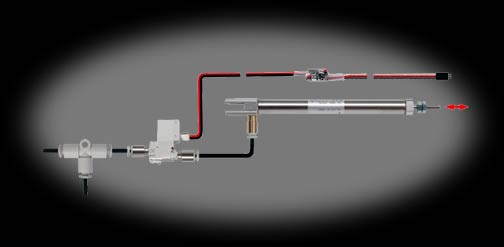

VEX-275-0275 VEX Robotics Pneumatics Kit 1A - Single Acting Cylinder Add-on <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Kit 1A adds one Cylinder (Air Push, Spring Return) to Kit 1 or Kit 2. Cannot be used without Kit 1 or Kit 2. </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Uses one VEX Controller I/O port per air cylinder<br />
Reservoir is filled using a standard tie pump fitting<br />
Single Acting cylinder kit (air push, spring return)
</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Technical Info </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">System Pressure </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">689 kN/m (100 psi)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cylinder Bore </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">10mm (0.394in.) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cylinder Stroke </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">50mm (1.987in.) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum Force </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">54 N (12 lb. force) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cylinder Strokes </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">45 Strokes from 100 psi to 25 psi</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Valve Control </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Connects to one VEX Controller I/O Port </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Tank Volume </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">150 mL (9.153 in.) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cylinder Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Sgl.- Compressed - 5.5 in. / Extended - 7.5 in.<br />
Dbl.- Compressed - 6.125 in. / Extended - 8.25 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Reservoir Weight </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.68 lbs. </font></td>
</tr>
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Kit Contents </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Solenoid Driver - Cable w/Driver, Connects one VEX I/O Port to one Solenoid </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">"T" Fitting - "T" Fitting for Valves</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cylinder, Air Push, Spring Return - Single Acting Spring Return Cylinder 10mm Bore</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Solenoid, On/Off - 3/2 Solenoid Valve, 5VDC</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Fitting for Valves - Fitting 4mm Tubing x M3 Thread</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Fitting for Cylinders - M5 Male Connector for Cylinders</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Tubing - 4mm X 1696mm Length Tubing</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cylinder Rod Pivot - Pivot for the Cylinder Rod</font></td>
</tr>
</table>
