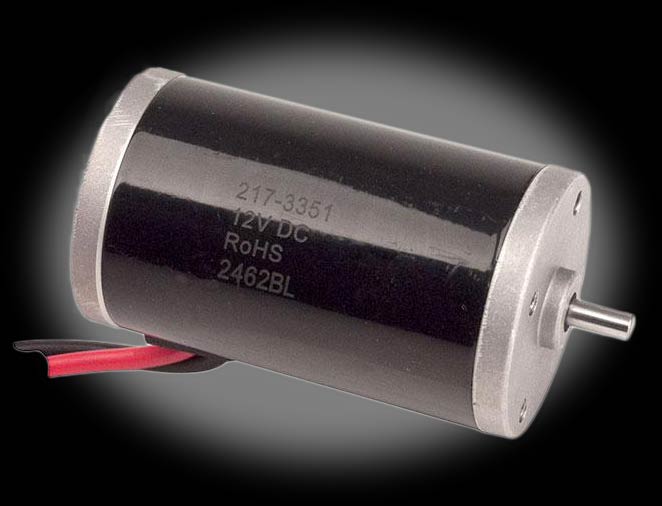

VEX-217-3351 VEX Pro BAG Motor <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The BAG Motor is a motor designed specifically for medium-power applications on FRC robots. This motor is constructed similarly to the CIM & Mini CIM, with the sealed-case robustness FRC teams have come to love & trust.

FIRST legal. 12V DC. </font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td width="30%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output Shaft Size </font></td>
<td width="70%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4mm (0.157in.) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Free Speed </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">140</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">00 rpm (+/-10%) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Free Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.8A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum Power</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">147 W </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">.4N-m (3.5 in-lbs) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">41A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Mounting Holes </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">(2) M4 tapped holes on a 25mm bolt circle </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.59in. diameter, 2.72in. long </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.71lbs.</font></td>
</tr>
</table>
