VEXpro ARM9 Microcontroller
The VEXpro ARM9 Microcontroller, aimed at universities and the research market, provides the power and sophistication that the most advanced VEX users want.

$349.99

The VEXpro ARM9 Microcontroller is a redesign of the popular Qwerk microcontroller as a result of a collaboration between VEX and Charmed Labs. The ARM9 Microcontroller is designed to be used by advanced users.

The ARM9 Microcontroller uses standard 802.11b/g communication. This will allow (with programming) highly configurable communication to PC's and wireless networks. The Carnegie Mellon Telepresence Robot Kit (TeRK) project provides a powerful feature to the ARM9 Microcontroller allowing robot control and video feedback across the internet. The controller can be operated from PC and Linux machines.

The VEXpro ARM9 Microcontroller requires a 7.2V Robot Battery, a VEXnet USB Adapter Key and a PC running Windows or Linux.

A USB A to mini B cable (sold separately) is required to configure Wifi encryption and to update firmware.

Features
ARM9 user processor running at 200Mhz
Supports 802.11 b/g wireless
(12) Standard 3-wire PWM Motor Ports
(4) "Smart" 2-wire Motor Ports
(16) High-Res (12 bit) Analog Inputs
(16) Fast Digital I/O Ports
(1) I2C Port
(1) UART Serial Port

Technical Information
Battery
Type	Six "AA" or 7.2 Robot Battery
Voltage	7.2V nominal, 5-12V min/max
Current	330mA nominal, 500mA maximum
I/O Ports
(12) 3-wire Motor Outputs
Usage	For 3-wire VEX motors, Motor Controller 29s, or servos
Type	Hobby Standard PWM
Refresh	Every 18.5 mSec
(4) 2-wire Motor Outputs
Usage	For 2-wire VEX motors
Type	H-Bridge
Refresh	Every 1 mSec
(1) I2C "Smart Sensor" Port
Usage	Future I2C products
(1) UART Serial Port
Usage	VEX LCD Module
(16) 12-bit Analog Inputs
Analong In	12-bit resolution. 10 micro second access time
(16) Fast Digital I/O (can be used as interrupts)
Digital In	150 kHz input frequency
(1) Internal Speaker
Usage	Output sound, voice, and music
(2) USB Ports
Usage	For connecting USB devices, including VEXnet Adapter Key

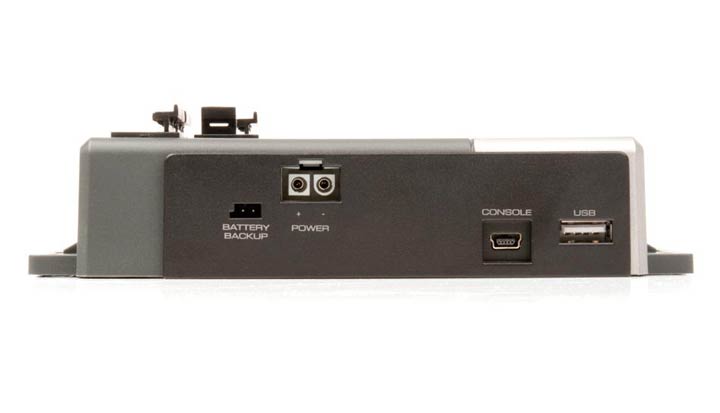

(1) USB mini-B Port
Usage	Allows access to the VEXpro's main Linux console
ARM9 Microcontroller
Speed	220 MIPS (million instructions per second)
RAM	32MB SDRAM
Flash	16MB program space
Programming	Linux 2.6 (openembedded)
Size	4.25 x 6.5 x 1.25 in.
Weight	0.66 lbs

Note: The VEX ARM9 Microcontroller is designed for advanced users. This product is not designed to be used in a primary or secondary classroom and is not legal for the VEX Robotics Competition.
