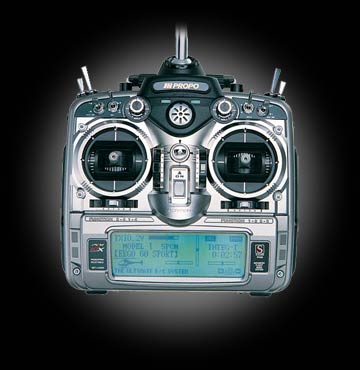

TX-JRP1656 JR 10-channel 10X Heli PCM Radio System 72Mhz <body bgcolor="#000000">
<p align="left"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">The
10X is housed in a magnesium cast case for strength, style, and function.
The case also features non-slip contoured backing for a firm, comfortable
grip. The 10X features removable rubber tabs on the back of the transmitter,
allowing easy access to gimbal spring tension adjustment. The included Sanyo®
1100 mAh NiCd can be charged in the transmitter, or easily removed and charged
outside of the transmitter, courtesy of the charge jack that is built into
the battery pack itself. The PCM 10X system also includes JR's High-Torque
Digital Servo - the 8317. These servos have 5 times the holding strength
of a regular analog servo. Features like these are exactly what you would
expect from JR. </font>.<font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The
10X Heli builds on the already capable 10SxII software, so pilots familiar
with the 10SxII will feel right at home with the 10X. But in typical JR style,
good enough is never enough and several additional programming and hardware
features have been added.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Robot
users, please note that this radio is NOT currently available in
75Mhz ground frequency, this radio is for Aircraft use only.</font></p>
<table width="100%" border="0">
<tr>
<td valign="top"><p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Specifications<br>
</font><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif"># of Channels:10<br>
Modulation:FM/ZPCM/SPCM<br>
Band:72<br>
Servos:5-JRPS8317<br>
Receiver:JRPR955<br>
Programming Features:Heli/CCPM<br>
Model Memory:10<br>
Modes:1,2,3&4<br>
Transmitter (Tx) Battery Type:11000 mAh nicad</font></p>
<p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Key
Features<br>
</font><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Intuitive
touch screen programming<br>
1100mAh transmitter battery standard<br>
Easy to remove Tx battery for charging in or outside the transmitter's
case<br>
Flight mode-warning alarm that warns if the flight mode switch
has been activated before the transmitter was turned on<br>
Great-looking, Durable aluminum carrying case<br>
Complete systems come with DataSafe® PC interface that allows model
memory to be stored on your PC<br>
Includes five (5) DS8317 Heli hi-torque digital servos</font></p>
<p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Tech Notes</font><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif"><br>
System Features<br>
- Swiveling Antenna<br>
- Tilting Antenna Base<br>
- Power Pilot Lamp<br>
- RF Output Lamp<br>
- AUX-4 Knob<br>
- Hovering Throttle Knob<br>
- High Pitch Trim Lever<br>
- Audible Speaker<br>
- Aileron Dual Rate Switch<br>
- Aileron/Elevator Stick<br>
- Digital Aileron Trim<br>
- Digital Elevator Trim <br>
- Antenna Storage<br>
- LCD Touch Panel Display<br>
- On/Off Power Switch<br>
- Neck Strap Eyelet<br>
- Mechanical Throttle Trim<br>
- Digital Rudder Trim<br>
- Throttle/Rudder Stick<br>
- Hovering Pitch Knob<br>
- Gear Switch<br>
- AUX-5 Knob<br>
- Low Pitch Trim Lever<br>
- Flight Mode Switch<br>
- Carrying Handle<br>
- Elevator Dual Rate Switch<br>
- Mix Switch<br>
</font></p>
<p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Program Features<br>
</font><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">- Reversing Switches<br>
- Travel Adjust/ATV/End Point Adjust <br>
- Dual Rate/Exponential Adjustments <br>
- Sub-Trim Adjustment <br>
- Throttle Hold <br>
- Function Select <br>
- Throttle Curve <br>
- Automatic Dual Rate <br>
- Data Reset <br>
- Rudder Throttle Mixing <br>
- Aileron Throttle Mixing <br>
- Elevator Throttle Mixing <br>
- Gyro Sensitivity Adjustment <br>
- Tail Rotor Curve <br>
- Standard Programmable Mixing <br>
- Multi-Point Programmable Mixing <br>
- Swashplate Mixing/Type <br>
- Pitch Curve Function <br>
- Servo Monitor <br>
- Fail-Safe/Hold <br>
- Model Name <br>
- Trim Offset <br>
- Digital Trims and Trim Rate Adjustment <br>
- Model Selection <br>
- Modulation Selection (SPCM, ZPCM, PPM) <br>
- Data Transfer <br>
- Timer <br>
- Keyboard Lock <br>
<br>
</font></p>
</td>
</tr>
</table>
Detailed
Information
JR's
3+1 Digital Trims offer greater precision for tricky maneuvers. The digital
trims offer advantages for all pilots; in fact it was learned from a survey
of the best U.S. scale pilots that digital trims offer advantages in all aspects
of control, except throttle. JR responded by providing a mechanical trim on
the throttle that is sure to be appreciated by all modelers. JR's 3+1 Digital
Trim arrangement utilizes Advanced Digital Trims on the roll, pitch, and yaw
channels and a mechanical trim lever on the throttle channel - the setup most
preferred by modelers we spoke to.
While the
JR 10X has an on-board memory of 10 models, it also includes DataSafe 2,
a revolutionary convenience in radio control technology. The PC interface
software allows pilots to interface their radio with their Windows 95/98
or NT systems to store an infinite number of models. DataSafe can also save
up to 200 models on a standard 3.5" floppy disk. You can even now exchange
and e-mail model settings to your flying partner or to any pilot across cyberspace
who has the DataSafe 2 system and your type of transmitter. Moving the digital
trim switches automatically stores the new trim position in memory for that
model. This allows switching between model set ups without having to reset
trim position each time and prevents accidental displacement of trim position
when the radio is off. Adjustable Trim Steps: This allows servo adjustment
of 1 to 10 steps per "click" of the digital trim switches for fine
or coarse adjustments of the trim position. Audible Trim Position Tones:
Trim position and direction of movement is audibly indicated with "beeps" of
varying frequency and tone whenever a digital trim switch is moved. This
allows modelers to make in-flight trim adjustments without taking their eyes
off the model. Software Updates: The software upgrades of the PCM 10X are
some of the most advanced available, but remain the most user-friendly. Enhanced
dual rates, two multi-point throttle curves, and new gyro parameters are
programmable making this system precise and versatile. And all of this is
easy to manage on the large easy-to-read touch screen interface.
Dual Rates & Exponential:
Independent Dual Rates (five values are available when flight modes are activated)
are independently adjustable for aileron, elevator and rudder for up/down and
right /left, allowing each direction's throw to be independently fine tuned.
This is especially helpful in getting the same pitch and roll rate with elevator
and ailerons.
Independent Exponential Values (five values are available when flight modes
are activated) are independently adjustable for aileron, elevator and rudder
for up/down and right/left, allowing the fine tuning of the feel. This is helpful
in matching the same feel for up/down and right/left.
Trim Rate:
Trims can be selected so that each of the five available flight modes has its
own individual trims that are automatically selected and are adjusted through
the digital trims. Or, Flight Mode Trim can be inhibited so the trims are the
same in each flight mode: thus, adjusting the trim in one flight mode affects
all flight modes.
Throttle
Curves:
Two Multi-point throttle curves are available and up to 8 points can be programmed
and manipulated to any desired throttle response. The two curves can be selected
with Flight Modes or switches.
Gyro Programming:
Updated gyro system (code 44) allows up to three gyro gains to be selected
and programmed via a switch or flight mode. A stick preferential program
is available that automatically reduces the gyro gain as the control stick
is displaced. Two gyros can be used on your choice of the three main control
surfaces (rudder, elevator or aileron).
$1229.99
