TW-TWM3 TW TWM3 Gearbox <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Introducing
the perfect solution to convert the powerful 3&quot; A28-series Ampflow motor into the ultimate drive motors! </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These
custom-machined and carefully assembled gearboxes are made from high strength
Fortal aluminum, have a Titanium output shaft, and are completely battle-tested.Long retaining screws come in from the brush end, and go all the way through
the Ampflow motor to the gearbox backplate. Assembly with your Ampflow motor is
easy, you will need to make some simple modifications to the Ampflow motor
when installing.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">An awesome
solution for low-profile robots that want a LOT of drive power! Ampflow motor
NOT included.</font></p>
<table width = 100% border="1" cellpadding="0" cellspacing="0" bordercolor="#999999">
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">For
use with Ampflow Motor</font></td>
<td><div align="center"><a href="0-A28-400.html"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">A28-400</font></a></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Ratio</font></td>
<td><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">7.14:1
two-stage</font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Output
Speed @ 24V </font></td>
<td><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">686 RPM </font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Max
Torque @ 24V </font></td>
<td><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1664
in lb</font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Output
Shaft </font></td>
<td><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">.75&quot;
dia </font></div></td>
</tr>
<tr>
<td><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Gearbox
weight</font></td>
<td><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">7.25
lbs</font></div></td>
</tr>
</table>

TW TWM3 Gearbox
Introducing the perfect solution to convert the powerful 3" A28-400 Ampflow motors into the ultimate drive motors!

$570.00
Robot MarketPlace - TW TWM3 Gearbox

Mechanical and Drive
    TW Gearboxes

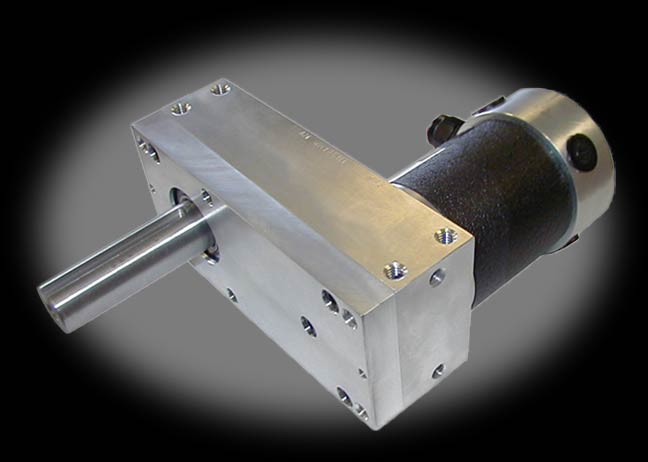

Click photo to enlarge.

TW TWM3 Gearbox
Part# TW-TWM3



(average customer rating)

$570.00
This Product Has Been Discontinued
Stock Status: Removed
