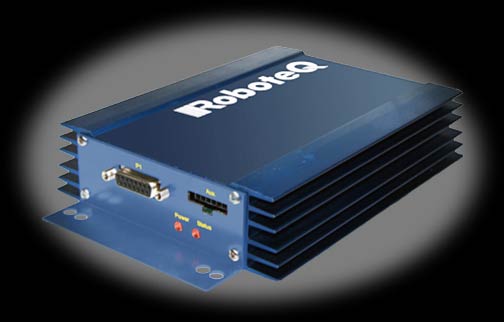

Robot MarketPlace - RoboteQ VDC2450 Dual Channel 150A Brushed DC Motor Controller

Roboteq's VDC2450 controller is designed to convert commands received from a RC radio, Analog Joystick, wireless modem, or microcomputer into high voltage and high current output for driving one or two DC motors. Designed for maximal ease-of-use, it is delivered with all necessary cables and hardware and is ready to use in minutes.

The controller's two channels can either be operated independently or mixed to set the direction and rotation of a vehicle by coordinating the motion on each side of the vehicle. The motors may be operated in open or closed loop speed mode. Using low-cost position sensors, they may also be set to operate as heavy-duty position servos. Numerous safety features are incorporated into the controller to ensure reliable and safe operation.

The controller's operation can be extensively automated and customized using Basic Language scripts. The controller can be reprogrammed in the field with the latest features by downloading new operating software from Roboteq.

Power
Max Voltage	50V DC
Number of Channels	2
Direction	Forward/Reverse
Max Amps per Channel	150A
Continuous Amps per Channel	80A
ON Resistance	3 mOhm
Power Connections	Wires
Command
Analog	Yes
RS232	Yes
USB	No
CANbus	No
RC Pulse	Yes
MicroBasic Scripting	Yes
Control Loop (ms)	1
Input/Outputs
Analog Inputs	4
Digital Inputs	6
Digital Outputs	2
Pulse Inputs	5
Encoder	No
Physical
Cooling	Heatsink Extrusion
Cables	15-pin to RS232 cable included 15-pin to RC Radio cable available separately
Dimensions	228 x 140 x 40mm
Weight	1500g
