RTQ-MDC2230C RoboteQ MDC2230 Dual Channel 60A Brushed DC Motor Controller <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Roboteq's MDC2230 controller is designed to convert commands received from an RC radio, Analog Joystick, wireless modem, PC (via RS232 or USB) or microcomputer into high voltage and high current output for driving one or two DC motors. Designed for maximal ease-of-use, it is delivered with all necessary cables and hardware, and is ready to use in minutes.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The controller features a high-performance 32-bit microcomputer and quadrature encoder inputs to perform advanced motion control algorithms in Open Loop or Close Loop (Speed or Position) modes. The MDC2230 features several Analog, Pulse and Digital I/Os which can be remapped as command or feedback inputs, limit switches, or many other functions. The controller's two motor channels can either be operated independently or mixed to set the direction and rotation of a vehicle by coordinating the motion of each motor. Numerous safety features are incorporated into the controller to ensure reliable and safe operation.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The controller's operation can be extensively automated and customized using Basic Language scripts. The controller can be reprogrammed in the field with the latest features by downloading new operating software from Roboteq.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Power </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Max Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">30V DC </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Number of Channels </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Direction</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Forward/Reverse</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Max Amps per Channel </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">60A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Amps per Channel </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">50A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">ON Resistance </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6 mOhm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power Connections </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Faston</font></td>
</tr>
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Command</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Analog</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RS232</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">USB</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">CANbus</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RC Pulse </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">MicroBasic Scripting </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Control Loop (ms) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
</tr>

<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Input/Outputs</font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Analog Inputs </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Digital Inputs </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Digital Outputs </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Pulse Inputs </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Encoder</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No</font></td>
</tr>
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Physical</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cooling</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Conduction plate </font></td>
</tr>
<tr>
<td><p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cables</font></p></td>
<td><p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No cables included. Order RS232, RC Radio, and Encoder and Transition Cables separately. </font></p></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">140 x 140 x 25mm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">250g</font></td>
</tr>
</table>

RoboteQ MDC2230 Dual Channel 60A Brushed DC Motor Controller
Roboteq's MDC2230C controller is an easy to use dual channel 60A motor controller that can accept commands from RC radio, Analog joystick, wireless modem, PC or microcomputer.

$325.00
Robot MarketPlace - RoboteQ MDC2230 Dual Channel 60A Brushed DC Motor Controller

Electronics
    RoboteQ Speed Controllers

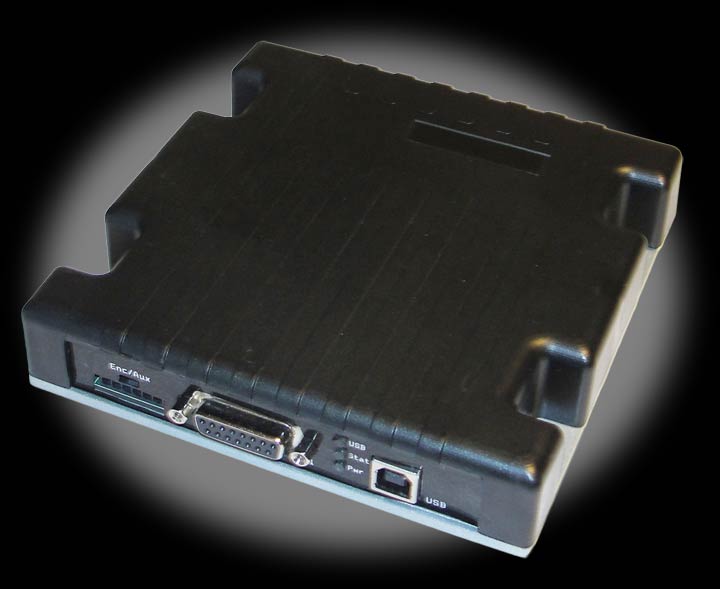

Click photo to enlarge.

RoboteQ MDC2230 Dual Channel 60A Brushed DC Motor Controller
Part# RTQ-MDC2230C
