Description

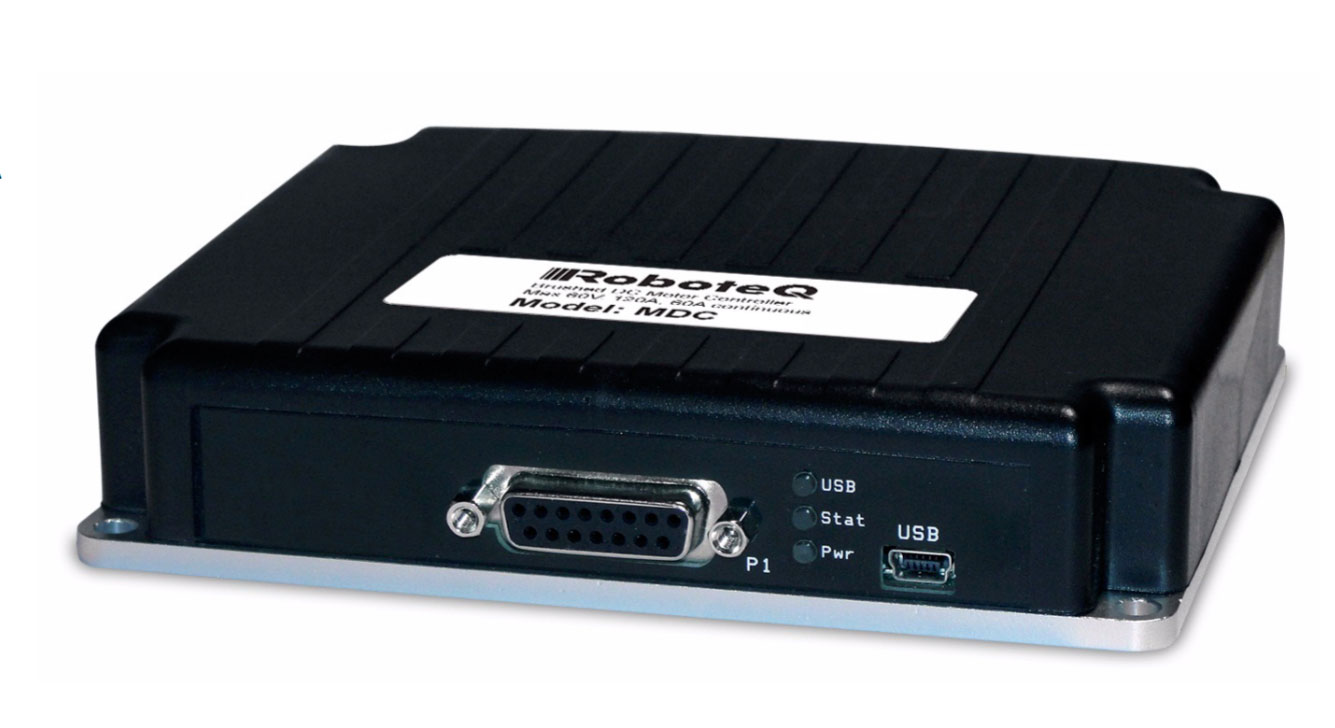

Roboteq's MDC1xxx controller is designed to convert commands received from an RC radio, Analog Joystick, wireless modem, PC (via RS232 or USB) or microcomputer into high voltage and high current output for driving one or two DC motors. Designed for maximal ease-of-use, it is delivered with all necessary hardware and is ready to use in minutes.The controller features a high-performance 32-bit microcomputer and quadrature encoder inputs to perform advanced motion control algorithms in Open Loop or Close Loop (Speed or Position) modes. The MDC14xx features several Analog, Pulse and Digital I/Os which can be remapped as command or feedback inputs, limit switches, or many other functions. The controller's two motor channels can either be operated independently or mixed to set the direction and rotation of a vehicle by coordinating the motion of each motor. Numerous safety features are incorporated into the controller to ensure reliable and safe operation.
The controller's operation can be extensively automated and customized using Basic Language scripts. The controller can be reprogrammed in the field with the latest features by downloading new operating software from Roboteq.
Applications
- Industrial Automation
- Fan & Pump control
- Winch & Cranes
- Personal transportation
- Automatic Guided Vehicles
- Terrestrial and Underwater Robotic Vehicles
- Automated machines
- Telepresence Systems
- Animatronics
Specifications
Motor Type Brushed DC
Max Voltage 30
Number of Channels 1
Direction Forward/Reverse
Max Amps per Channel 80
Continuous Amps per Channel 50
ON Resistance (mOhm) 6
Power Connections Fast on
Analog Yes
RS232 Yes
USB Yes
CANbus Yes
RC Pulse Yes
MicroBasic Scripting Yes
Control Loop (ms) 1
Regenerative braking Yes
Max Analog Inputs 4
Max Digital Inputs 6
Digital Outputs 2
Max Pulse Inputs 5
Encoder Yes
Cooling Conduction plate
Dimensions 140mm x 140mm x 25mm
Weight 250g
$225.00
