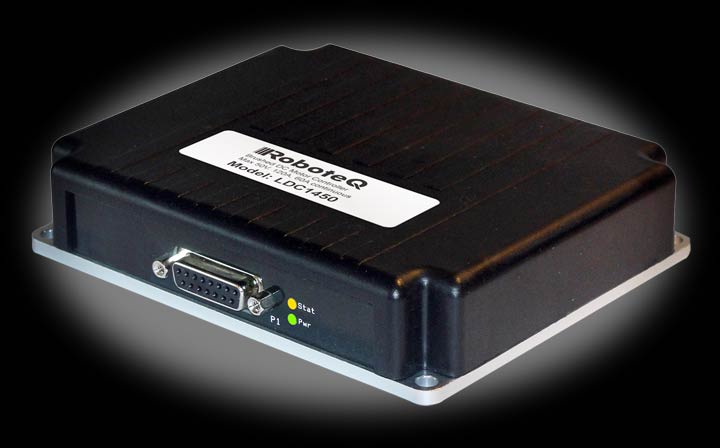

Robot MarketPlace - RoboteQ LDC1450C Single Channel 120A Brushed DC Motor Controller

Roboteq's LDC1450C controller is designed to convert commands received from an RC radio, Analog Joystick, wireless modem, PC (via RS232) or microcomputer into high voltage and high current output for driving one DC motor. Designed for maximal ease-of-use, it is delivered with all necessary cables and hardware, and is ready to use in minutes.

The controller features a high-performance 32-bit microcomputer and quadrature encoder inputs to perform advanced motion control algorithms in Open Loop or Close Loop (Speed or Position) modes. The LDC1430C features several Analog, Pulse and Digital I/Os which can be remapped as command or feedback inputs, limit switches, or many other functions.

Numerous safety features are incorporated into the controller to ensure reliable and safe operation. The controller's operation can be extensively automated and customized using Basic Language scripts. The controller can be reprogrammed in the field with the latest features by downloading new operating software from Roboteq.

Power
Max Voltage	50V DC
Number of Channels	1
Direction	Forward/Reverse
Max Amps per Channel	120A
Continuous Amps per Channel	60A
ON Resistance	3 mOhm
Power Connections	Faston
Command
Analog	Yes
RS232	Yes
USB	No
CANbus	No
RC Pulse	Yes
MicroBasic Scripting	Yes
Control Loop (ms)	4
Input/Outputs
Analog Inputs	6
Digital Inputs	6
Digital Outputs	2
Pulse Inputs	6
Encoder	No
Physical
Cooling	Conduction plate
Cables	15-pin to RS232 cable included 15-pin to RC Radio cable available separately
Dimensions	113 x 140 x 20mm
Weight	100g
