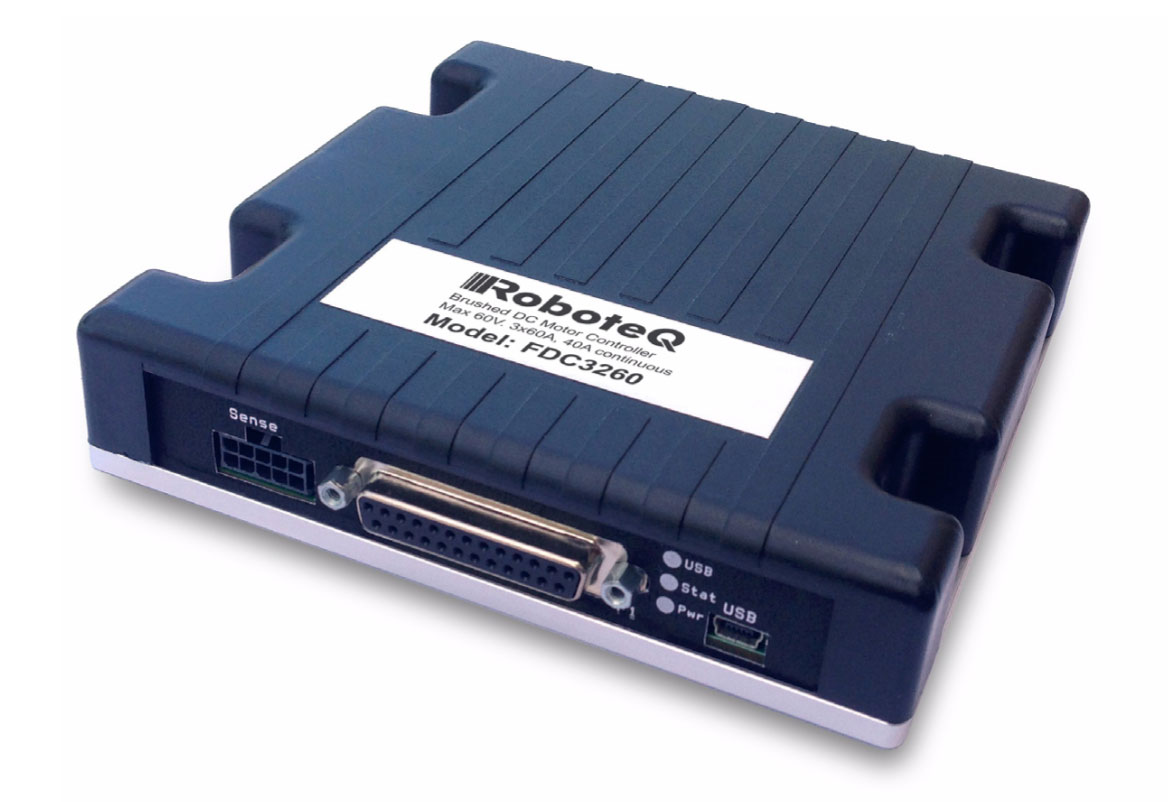

RoboteQ FDC3260 Triple Channel 60A Brushed DC Motor Controller
Part# RTQ-FDC3260




Please see this product on the new Robot MarketPlace web site. Click here








General Product Information
Other Documentation
Reviews & Comments

Description
Roboteq's FDC3260 is a features-packed, high-current, triple channel controller for brushed DC motors. The controller features a high-performance 32-bit microcomputer and quadrature encoder inputs to perform advanced motion control algorithms. The motors may be operated in open or closed loop speed mode, position mode or in torque mode.
The FDC3260 features several Analog, Pulse and Digital I/Os which can be remapped as command or feedback inputs, limit switches, or many other functions. The FDC3260 accepts commands received from an RC radio, Analog Joystick, wireless modem, PLC, or microcomputer. For mobile robot applications, two of the controller's three motor channels can either be operated independently or mixed to move and steer a vehicle. Using CAN bus, up to 127 controllers can be networked at up to 1Mbit/s on a single twisted pair.
Numerous safety features are incorporated into the controller to ensure reliable and safe operation. The controller's operation can be extensively automated and customized using Basic Language scripts. The controller can be configured, monitored and tuned in realtime using a Roboteq's free PC utility. The controller can also be reprogrammed in the field with the latest features by downloading new operating software from Roboteq.

Applications
- Motion simulators
- XYZ platforms
- Underwater Robotic Vehicles
- Stabilization Gimbals
- Machine tools
- Industrial automation
- Telepresence Systems
-Animatronics

Specifications
Motor Type Brushed DC
Max Voltage 60
Number of Channels 3
Direction Forward/Reverse
Max Amps per Channel 60
Continuous Amps per Channel 40
ON Resistance (mOhm) 2.5
Power Connections Fast on
Analog Yes
RS232 Yes
USB Yes
CANbus Yes
RC Pulse Yes
MicroBasic Scripting Yes
Control Loop (ms) 1
Regenerative braking Yes
Max Analog Inputs 8
Digital Outputs 4
Max Digital Inputs 10
Max Pulse Inputs 6
Encoder Yes
Cooling Conduction plate
Dimensions 140mm x 140mm x 25mm
Weight 250g
