NPC-B81 NPC-B81 Left-Side Geared Motor <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Both
B81 and <a href="NPC-B82.html">B82</a> motors come standard with an electro-magnetic 24v parking
brake, which can easily be removed if that function is not necessary.
Built for continuous 24 volt 30 amp duty, they can be run at 36 volts
for 5 minutes, adding about 50% more speed and torque. This motor
comes in either left or right side shaft drive configurations, and
makes a great drivetrain for a large

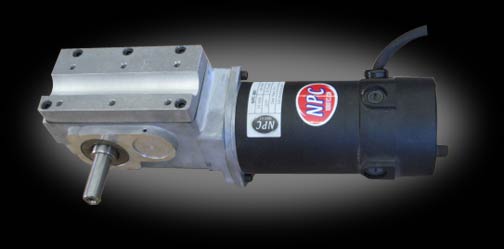

robot. B81 is shown here. </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">24V-36V<br>
Reversible, Permanent Magnet<br>
18:1 gear ratio<br>
Overall length of motor & gearbox = 14 5/8&quot;<br>
Width of gearbox = 3-3/8&quot;<br>
Diameter of motor = 3-3/4&quot;<br>
Length of output shaft 1-3/4&quot;<br>
Output shaft diameter = 17 mm<br>
Keyway = 6mm<br>
20.4 pounds untrimmed <br>
17 pounds trimmed <br>
180 rpm / 18:1 gear ratio<br>
