ML-MMP5 MMP-5 Mechanical Mobile Platform <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These
robot platforms were designed with versatility in mind. We wanted to
build a workhorse that could be used in many applications. These applications
may include, education, research and development, service and inspection,
surveillance and security, exploration, hazardous duty, trade shows,
robotic competitions, personal projects, or even entertainment. </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The
MMP platforms come with dual PWM electronic speed controls that utilize
the R/C standard control signal. This is the same signal that is
used to control standard hobby servo motors. The signal&nbsp; is a 1.0 ms
to 2.0 ms pulse rate with 1.5 ms being the &quot;dead zone&quot;. This
means that by varying a pulsed signal with timing between 1 and 2 milliseconds
you can control the left and right hand drive motors in fully proportional
forward and reverse.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Utilizing
this control format allows the use of&nbsp; standard hobby receivers
to control the MMP's as well as most micro controllers such as the Basic
Stamp, the Scott Edwards servo controller board and&nbsp; Lynxmotion's
First Step and Next Step boards. This also means that the MMP's are
great for directly transplanting your robots &quot;brains&quot; and
sensors from existing projects and kits.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Alternately,
you may also choose the Serial controller option, so you may control
this unit from a computer or other RS-232 interface.</font></p>

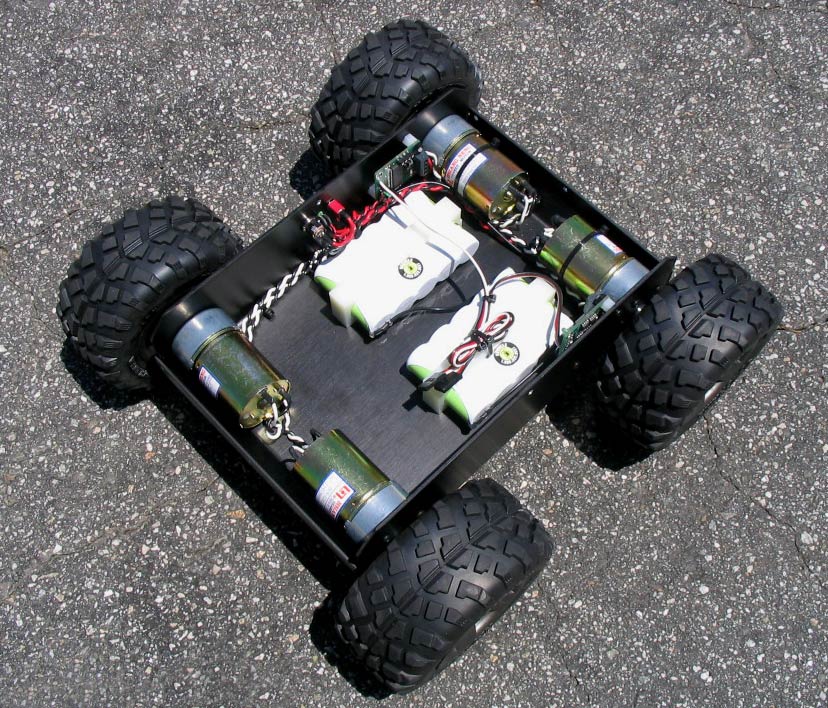

<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The
MMP platforms come with a hard, Black Anodized chassis.
This gives them a tougher scratch-resistant coating and a nice look.</font></p>
<table width="100%" border="1" cellpadding="1" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Drive</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4 Wheel drive
(Geolanders tires as below)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Suspension</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Semi-Pneumatic
Tires</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Chassis</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2-piece Aluminum
Chassis</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motors</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4 x 12VDC Gearhead
motors</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Speed</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.5 feet/second</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motor Control</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2 x 12 Amp
PWM <a href="htttp://robotcombat.com/products/images/store_10Apwm.jpg">Controllers</a><br>
1.0-2.0 MS Signal (R/C Std.)<br>
Optional Serial Control</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Batteries</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12V
1700maH NiCad</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Run Time</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1 hour +</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.5lb</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Payload</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4 lb</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.1 inches</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">10.25 inches</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">10.25 inches</font></td>
</tr>
</table>
<p><font color="#FF0000" size="2" face="Arial, Helvetica, sans-serif"><strong>This
unit does not come with R/C controller.<br>
You will also need
a NiMh battery charger. </strong></font></p>
<p><font size="2" face="Arial, Helvetica, sans-serif">For more information
about this product, go to the <a href="http://www.themachinelab.com/">Machine
Lab</a> web site, then make sure to come back here to place your
order!</font></p>
<p><font color="ff0000" size="2" face="Arial, Helvetica, sans-serif">This product is custom-made, and may take up to 7 days to manufacture. </font></p>

MMP-5 Mechanical Mobile Platform
These robot platforms were designed with versatility in mind. We wanted to build a workhorse that could be used in many applications. These applications may include, education, research and development, service and inspection, surveillance and security, exploration, hazardous duty, trade shows, robotic competitions, personal projects, or even entertainment.

$455.00
Robot MarketPlace - MMP-5 Mechanical Mobile Platform


    Machine Labs

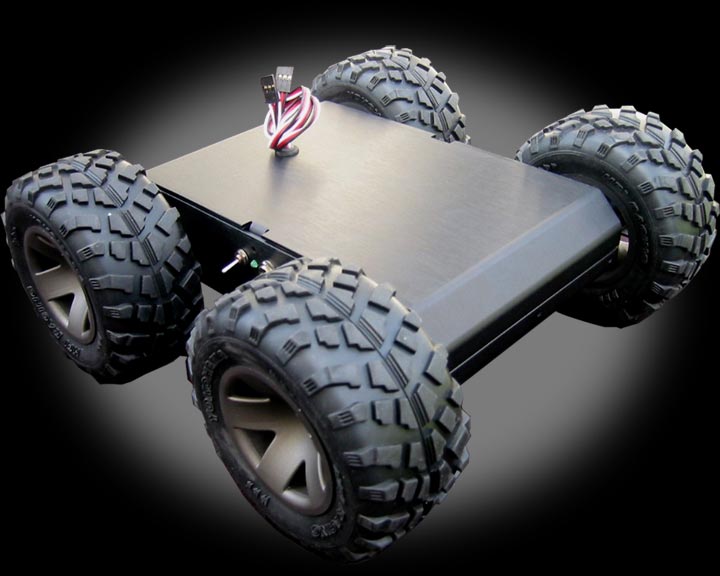

Click photo to enlarge.

MMP-5 Mechanical Mobile Platform
Part# ML-MMP5




Please see this product on the new Robot MarketPlace web site. Click here
