Ampflow Mini Speed Controller
The AmpFlow Mini Controller is a dual motor controller with an integrated RC switch. It operates at 15 to 24 Volts and it can handle 60 Amps per channel continuous and 100 Amps per channel for two minutes

$365.00
Robot MarketPlace - Ampflow Mini Speed Controller
CLOSE X
Loading Image...

Electronics
    Ampflow Motor Controllers


Click photo to enlarge.

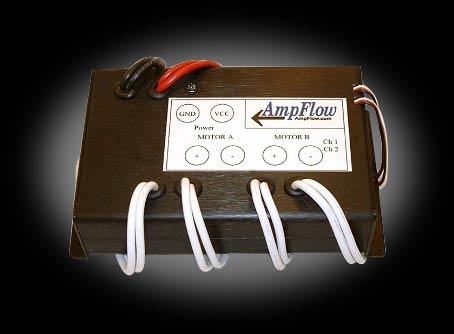

Ampflow Mini Speed Controller
Part# MAG-AMPMNI


No reviews yet.

$365.00
This Product Has Been Discontinued
Stock Status: Removed






General Product Information
Other Documentation
Reviews & Comments

The AmpFlow Mini Controller is a dual motor controller with an integrated RC switch. It operates at 15 to 24 Volts and it can handle 60 Amps per channel continuous and 100 Amps per channel for two minutes.

Two mixing options are available. Each joystick can operate one channel independently, or a single joystick can operate both channels for tank-like steering.

The controller also features a third channel that can be used for switching a relay to control another motor or it can be used for inverting motor outputs if your robot is flipped over.

Over-current control logic prevents meltdowns and provides the maximum current even under stalled conditions. The maximum allowable current is reduced as the temperature increases to protect the controller while putting out the highest safe power.

This compact controller features an extruded aluminum case that measures 6.0L x 4.2W x 1.5H

Specifications:
Two Mixing Options: Single/Car or Dual/Tank Steering
Three Opto-isolated Inputs (2 - Steering, 1 - Invert)
Third Channel RC Switch
24 MOSFETs (12 per H-bridge)
Over-Temperature Protection
Over-Current Protection
Automatic Detection of R/C Signal Loss
Motor Voltage: 15V - 24V
Continuous Current Rating (each channel): 60A
Six Minute Current Rating (each channel): 80A
Two Minute Current Rating (each channel): 100A
Five Seconds Peak Current Rating (each channel): 225A
Case Dimensions: 6.0L X 4.2W X 1.5H
Weight: 1.4 pounds
