Robot MarketPlace - Kumotek KT-X Gladiator Biped Robot

Note: This product come unassembled from the manufacturer. It can come assembled for an extra $300.00 fee. Please contact us if you wish to receive this product assembled.

There is at least a 2-week lead time for manufacturing on all Kumotek items.

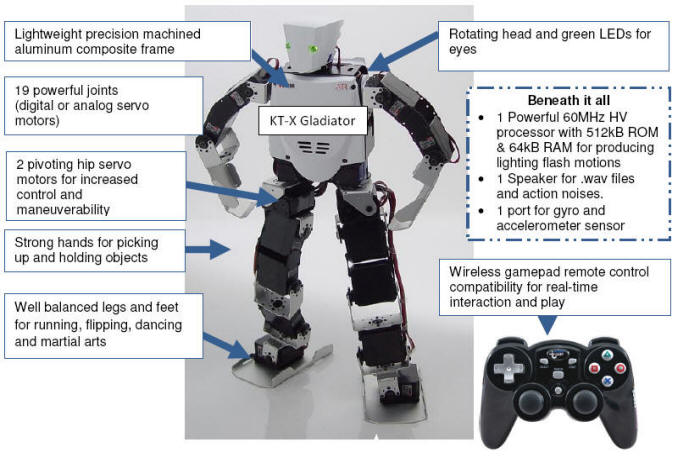

The KumoTek-X (KT-X) bipedal robot is the latest robot to emerge from the creative labs of KumoTek Robotics and Vstone Corporation. This robot was designed to offer an entertaining, low-cost alternative to high-end robotics, while stylishly combining the latest in sleek design and cutting-edge robotics engineering. The KT-X Gladiator is the 19 degrees of freedom extension to the original KT-X bipedal humanoid robot. This robot comes with a hip extension kit plus two additional servos to make him the ultimate robot for competitions, or just plain fun.

The KT-X is the first low-cost bi-pedal robot platform of its kind to be offered in the U.S. that (a) can be controlled using a standard wireless PS2 gamepad controller, (b) is easy to use and (c) offers endless hours of entertainment.

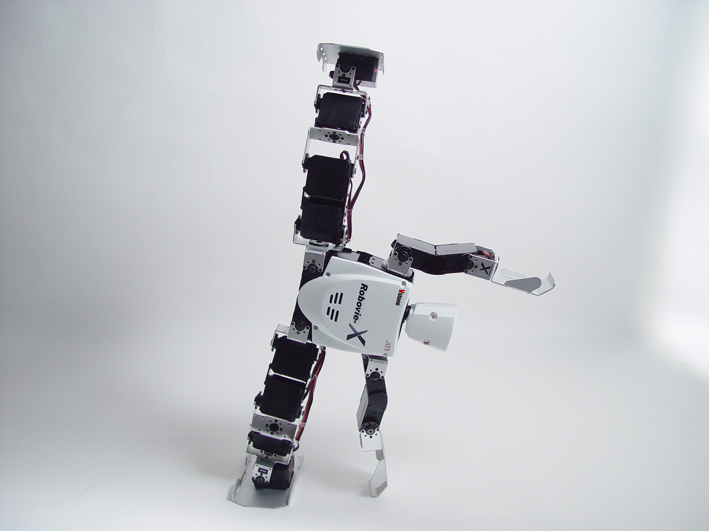

The robot is capable walking, running, somersaulting and standing up from a face-up or face-down lying position. It can even be programmed to pull itself up autonomously after it has fallen over. It stands 13" tall, has 19 servo actuated joints (i.e., 19 degrees of freedom), a powerful 60MHz HV processor with 512kB ROM / 64kB RAM and comes fully loaded with over 75 preprogrammed acrobatic motions.

The robot also comes with an easy to use programming interface, which is without a doubt the most user-friendly programming utility to date and requires little to no prior experience with robotics or programming. It can be purchased as a kit or fully assembled.

Physical Specs:

Height: 13.5in.
Width: 6in.
Depth: 2.5in.
Weight: 2.9 lbs.
Degrees of Freedom: 19
Sensors: Each servo has an embedded sensor for detecting the position in real time
CPU: H8 -- 60MHz HV processor with 512kB ROM/64kB RAM

Servo Specs:

Number: 19
Torque: 9.2kg cm
Speed: 0.11sec/60deg
Weight: 42g
Control Method: PWM

Software Specs:

GUI: Slider bars for each axis; drag and drop motions for easy configuration; over 100 motion files included
GYRO: Provides real time gyro control, management, and feedback through RS-232 connection
RF and Game-pad Configuration: Easy to use RF or PS2 gamepad remote control for uploading and possible combination of motions
Autodemo Files: Can upload numerous external autodemo files for untethered robot demonstrations
Education: Great for educators and classroom environments
