IL-GMS100 100:1 SRV Drive Motor <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These are just amazing little motors for their weight. With one at each of your
four corners you are always guaranteed good traction and speed. These have
a special long shaft with a &quot;D&quot; cut into it for the outer 10mm to
ensure full engagement and proper spacing of our tank tread wheels.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Specs:<br>
5-14V<br>
18mm (0.7 in) long shaft x 3mm diameter<br>
D shape on last 10mm (0.39 in)<br>
100:1 gear ratio<br>
Stall Torque: 14.9 oz-in (1073 g-cm)<br>
Size: 0.47&quot; x 0.39&quot; x 1.24&quot; (12mm x 10mm x 31.5mm)<br>
Weight: 8.5 grams (0.31 oz)<br>
200 RPM @ 4.5V</font></p>

100:1 SRV Drive Motor
These are just amazing little motors for their weight. Made with a custom 18mm shaft that's perfect for the SRV Tread Set.

$14.99
Robot MarketPlace - 100:1 SRV Drive Motor

Motors
    Surveyor Robot

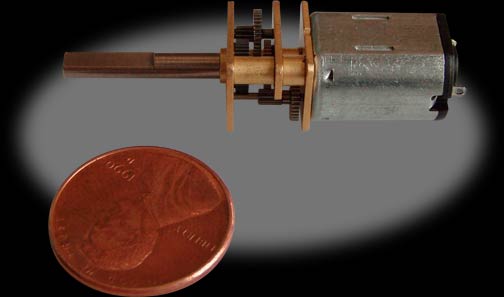

Click photo to enlarge.

100:1 SRV Drive Motor
Part# IL-GMS100



(average customer rating)

$14.99
This Product Has Been Discontinued
Stock Status: Removed
