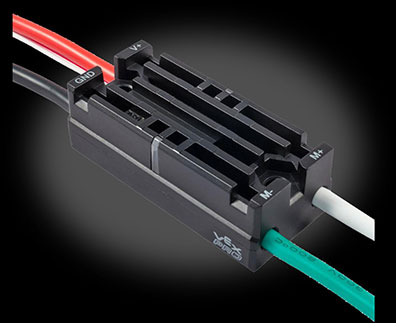

IFI-VICTORSP IFI VEX Pro Victor SP <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Victor SP is the latest member of the Victor Motor Controller product line. This latest iteration features completely overhauled internals and an innovative case less than half the size of previous models.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Victor SP has been redesigned from the ground up using 15 years of lessons-learned and user feedback from thousands of robotics teams. The Victor SP was co-developed through a collaborative partnership between VEX Robotics and Cross the Road Electronics and includes many of the enhancements popularized by the Talon SR. </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Full aluminum case, passive cooling fins, and sophisticated internal components make fans optional<br />
Completely sealed enclosure prevents debris from getting anywhere it shouldn't be<br />
Electrically insulated components allow for direct controller mounting to a robot frame with no fear of shorting<br />
LED indicators blink proportionately to output speed for easier debugging<br />
Illuminated "Brake / Coast Calibration" button enables one-touch setting changes and calibration<br />
Robust embedded power & output cables will never shake loose during a match<br />
Built-in pockets sized for #8 nuts and zip tie grooves make rigid mounting simpler than ever<br />
Integrated sign-magnitude synchronous rectification reduces heat generation at full motor stall<br />
15 KHz output switching frequency ensures smooth and precise motor control</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Kit Contents</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">(1) Victor SP Motor Controller<br />
Power, Ground, Output, and PWM cables come pre-attached</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.5 x 1.125 x 0.875 in. (63.5 x 28.6 x 22.2mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.20 lb</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Material Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cast Aluminum</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Material Finish</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Black Anodized for superior performance & heat dissipation</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Nominal Voltage</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Min/Max Voltage</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6-16V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Outputs</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Powers brushed DC motors with variable speed forward, reverse, or off.<br />
Can NOT be used with Brushless motors.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Current</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">60A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Surge Current (2 sec)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">100A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">PWM Input Pulse (high time)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1 - 2 ms nominal<br />
0.6-2.4 ms max</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">PWM Input Rate (period)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.9 - 100 ms</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">PWM Output Chop Rate (Switching Frequency)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">15 KHz</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Minimum Throttle (Deadband)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4%</font></td>
</tr>
</table>
