ETK-ETEKRT Motenergy ME0709 PMDC Motor <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Similar to the Motenergy ME0708 motor, but provides more torque, at a little less speed (50rpm/V)., and is rated up to 72V.
Slightly heavier than the original Briggs & Stratton Etek, this radial motor can do 150 amps at 48 volts continuous
and runs in either direction. This motor is ideally suited for 24-72 Volt
DC drive systems. Works with our <a href="RTQ-AX2550.html">AX2550</a> or any other PM motor controller that can handle the massive current this motor is capable of pulling. Great
for Electrathons , Motorcycles, go-karts, ride on trains, boats, or robots.</font></p>
<font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Rated for use up to 72V<br>
2400rpm @ 48V, 3700rpm @ 72V<br>
39 pounds<br>
8&quot; diameter<br>
6.5&quot; length<br>
7/8&quot; x 1-3/4&quot; shaft with 3/16&quot; keyway<br>
Max motor current: 330A for 2 minutes<br>
19 horsepower max</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Need
to proportionally and remotely control this motor? Check out the <a href="RTQ-AX2550.html">AX2550
Speed Controller!</a> </font></p>
<p><font color="ff0000" size="2" face="Arial, Helvetica, sans-serif">Please note: This item may take an additional 1-2 buisness days before it is shipped. Please <a href="http://www.robotmarketplace.com/products/contact.html">contact us</a> with any questions.</font></p>

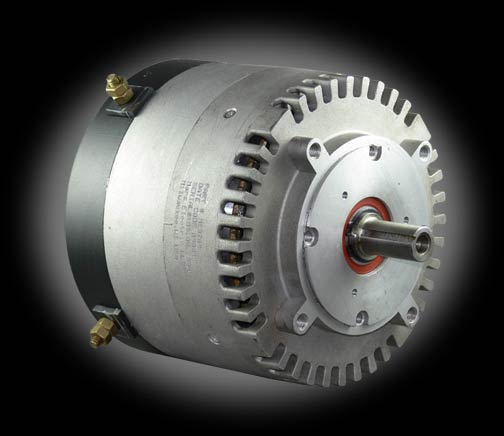

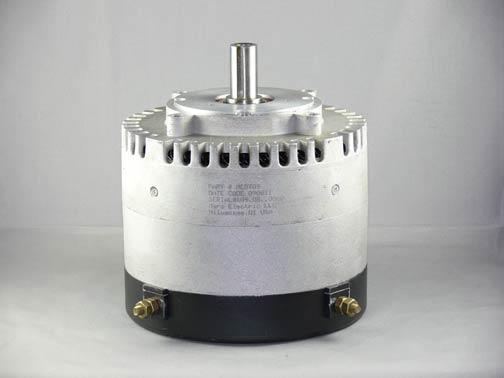

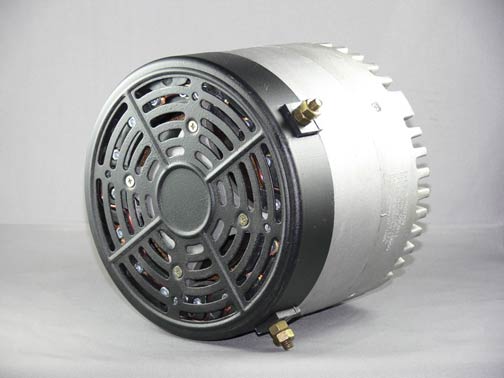

Motenergy ME0709 PMDC Motor
More torque but less speed than the Etek-R

$525.00
Robot MarketPlace - Motenergy ME0709 PMDC Motor

Motors
    Etek Motors


Click photo to enlarge.

Motenergy ME0709 PMDC Motor
Part# ETK-ETEKRT
