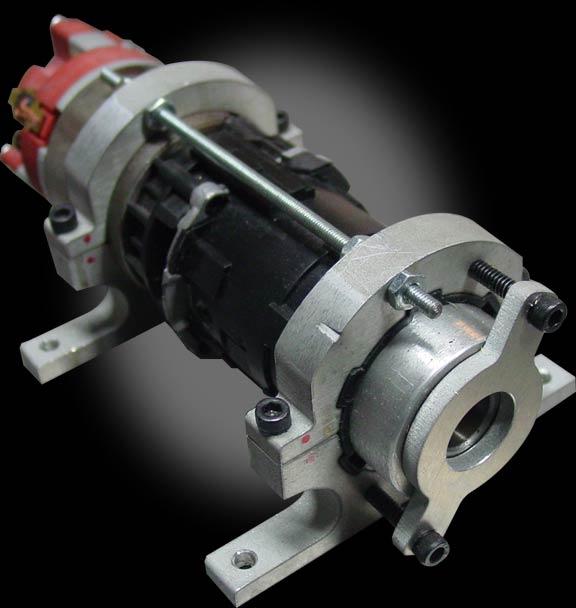

We start
with the powerful DeWalt 24V Hammerdrill
motor and it's well-engineered transmission, then modify and rebuild
it for robotic combat.
Specifications:
3 Pounds,
6 oz.
7.88" L x 4.5" W x 3.00" H (with mounts)
Can be run at 24 or 36V
Reversible, Neutral Timed
No shaft is included, the 5/8" shaft is sold separately
Note when ordering your 5/8" shaft, the first 1.25" of the shaft
will be inside the front of this motor, so you might want to order a slightly
longer shaft than usual.
|
24
Volt, High Torque |
36
Volt, High Torque |
Gear
Ratio |
50.4
: 1 |
50.4
: 1 |
No
load RPM |
450
RPM |
675
RPM |
Stall
Current |
120
Amps |
180
Amps |
Stall
Torque |
550
in-lb |
825
in-lb |
Horsepower |
.98
HP |
2.21
HP |
