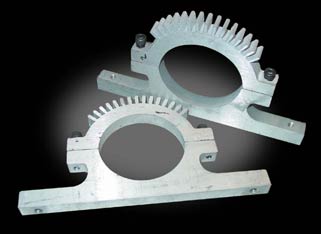

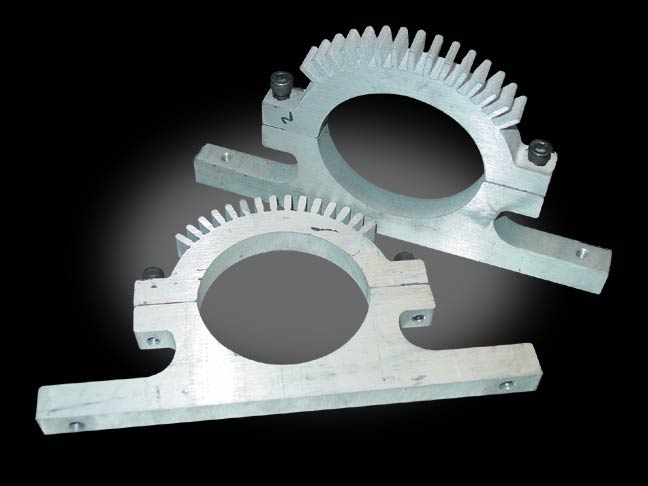

DCW-MAGF50 Ampflow Mount 1/2 inch thick - with heatsink (1 mount) <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These
are custom-designed mounts for both the A28-150 or the A28-400 Ampflow motor.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The addition of the cooling fins
helps dissipate the heat that this motor can produce, allowing your motor
to run more efficiently. </font>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Constructed using 1/2&quot; thick 6061-T6 aluminum. All mounts come with two holes in the base for
1/4&quot; screws, and two bolts are included to attach the top half of
the mount around your motor- couldn't be more simple to install.</font>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">There
are no other mounts made for this motor that are specifically-designed
for fast swap-out. Nothing worse that having to break down your entire
robot just to get a motor out, especially during a frantic competition.
With these mounts, 2 bolts from the top of each mount, and you can lift
the motor right out.</font>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight: 8.64oz
<br><br>
NOTE: This motor mount is designed to EXCLUSIVELY fit Ampflow motors(A28-400 or A28-15) ONLY, which have a inner can diameter of 2.75 inches. This mount <b>WILL NOT FIT</b> a 3" diameter motor can. It also <b>WILL NOT FIT</b> the F30-400, F30-150, E30-400 or E30-150 Ampflow motors, which have a 3.1&quot; diameter.</font><p align="left"><font color="ffff00" size="2" face="Arial, Helvetica, sans-serif"><strong>Mounts
are sold individually, you may want to use two per motor.</strong></font></p>

Ampflow Mount 1/2 inch thick - with heatsink (1 mount)
These are custom-designed for the 3" Ampflow motors, but will also fit other motors with a 3" diameter housing. These will fit both the A28-150 or the A28-400 Ampflow motors.

$30.00
Robot MarketPlace - Ampflow Mount 1/2 inch thick - with heatsink (1 mount)

Mechanical and Drive
    Motor Mounts


Click photo to enlarge.

Ampflow Mount 1/2 inch thick - with heatsink (1 mount)
Part# DCW-MAGF50
