These

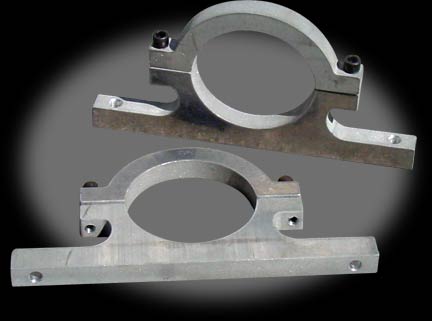

are custom-designed mounts for both the A28-150 or the A28-400 Ampflow motor.
Constructed using 1/2" thick 6061-T6 aluminum. All mounts come with two holes in the base for
1/4" screws, and two bolts are included to attach the top half of
the mount around your motor- couldn't be more simple to install.
There
are no other mounts made for this motor that are specifically-designed
for fast swap-out. Nothing worse that having to break down your entire
robot just to get a motor out, especially during a frantic competition.
With these mounts, 2 bolts from the top of each mount, and you can lift
the motor right out.
Weight: 8.29oz
NOTE: This motor mount is designed to EXCLUSIVELY fit Ampflow motors(A28-400 or A28-15) ONLY, which have a inner can diameter of 2.75 inches. This mount WILL NOT FIT a 3" diameter motor can. It also WILL NOT FIT the F30-400, F30-150, E30-400 or E30-150 Ampflow motors, which have a 3.1" diameter.
Mounts
are sold individually, you may want to use two per motor.
