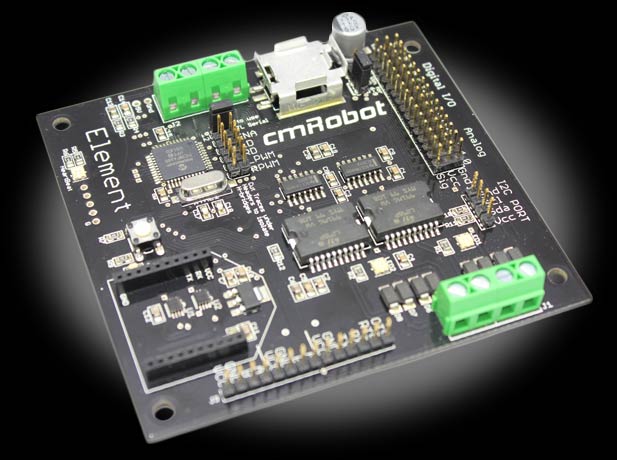

Robot MarketPlace - cmRobot Element Robot Controller

Educators worldwide use the Element platform for robotics, mechatronics, and machine control. The Element provides hands-on design opportunities for electrical, mechanical, and software engineers. From middle schools, high schools, undergraduate labs to research projects, students and engineers are using the Element platfom to drive the future of robotics.

The Element Makes Robotics Easy!

The Element was developed to allow developers to hit the ground running with their robotic application. Be up and running in an hour.
It's a ready-to-use solution to interface the Microsoftª .NET framework or ROS to the most common robotic hardware. The Element is a robotics controller with integrated analog inputs, digital inputs and outputs, I2c port, servo control as well as motor control with encoder inputs.
Dual 4A H-Bridges are built into the Element.
The Element requires absolutely no low level programming. Developers simply take advantage of the Element .NET or ROS libraries to effortlessly query or control their hardware.
The Element has been designed to fit a wide range of robotic applications.
The Element has an all-in-one board designÊand it is compact in size.
The Element includes TTL interface as standard features. XBee/XBee PRO radios are an option.

Features
All-in-one design: digital, analog, servo control, motor control with H-Bridges, encoders, PID algorithms and I2C in one board.
Multiple Interfaces: TTL, USB, Optional Addons: xBee and xBee PRO
Easy Programing: .NET library, ROS Optional Addons: Roborealm, Flowstone
Free Sample Code: digital, analog, I2C, PWM, PID, servo control

Specs
6-12V main power input
12V On-board input voltage regulator
4-6V Servo power input
One User definable LED
2 Bicolor LEDs for H-Bridge duty status
Dual 4 Amp H-Bridges for DC motor connection (6V-12V motors)
Control 2 DC motors simultaneously
Control 1 Bipolar Stepper Motor
External H-Bridge interface via headers for optionalÊ external H-Bridges
Velocity and Distance PID algorithmÊ built into firmware
One I2C Port (standard 100 KHz)
Six 10-bit Analog Inputs for analog sensors
13 digital I/O lines for digital sensors
Six I/O lines can be used for simultaneous control of six servos
On-board TTL serial port (optional plug-in USB, XBee and WIFI modules)
Dual single/quadrature encoder input ports
Easy connect board power input terminals
Easy connect servo power input terminals
Easy connect motor power terminals
Input voltage regulator heat sink
PC104 bolt pattern (stack multiple Element and PC104 single board computers)
Upgradable firmware
40 MHz controller
64K EEPROM
Open source .NET library
Free C# sample code
Compatible with Windows 8 | 7 | XP | Embedded | Linux | ROS | RoboRealm | FlowStone

Please note: There may be an additional 1-2 business day processing time for this item.
