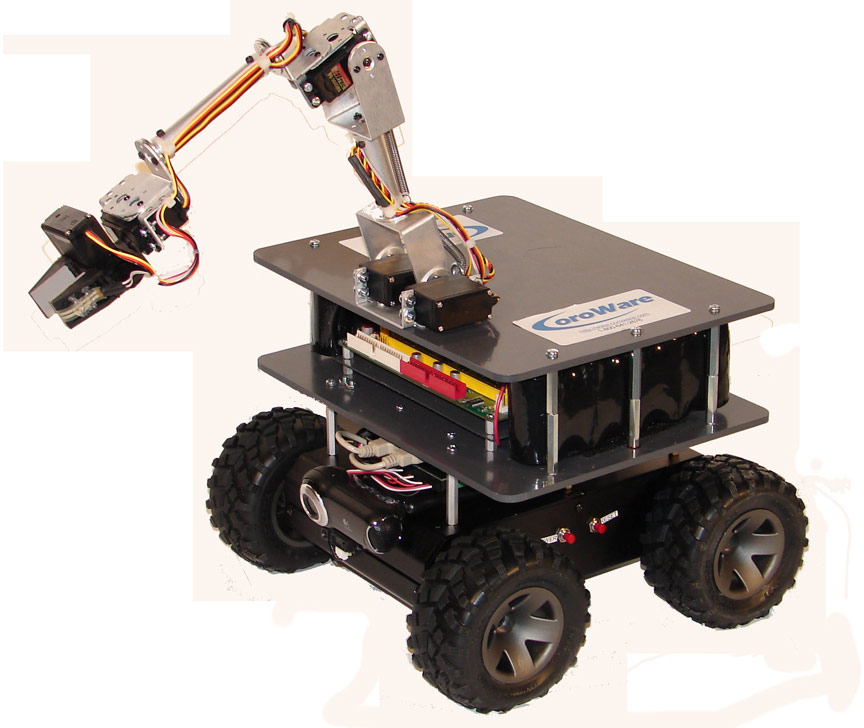

CB-COROBOT CoroBot <p><font color="ff0000"><strong><font size="2" face="Arial, Helvetica, sans-serif">This product has undergone several changes since we first listed it. New versions can be found <a href="corobot.html">here</a>.
</font></strong></font></p>

<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">CoroBot was created to minimize the complexity of robot development. By combining
a powerful PC-class platform with a robust, object-oriented software development
system, the CoroBot empowers you to rapidly deploy and develop robotics solutions.
The CoroBot also assists the hardware developer with additional physical mounting
space, ports, sensors and communication devices.</font></p>
<p align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Expandable</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Robot consumers often require features that go beyond what is provided by the
manufacturer. CoroBot has an open-ended design allowing you to significantly
extend its capabilities.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"> CoroBot's
top deck provides ample mounting space for additional hardware components
such as GPS, laser range finder, environmental sensors and more. Interfacing
to these added devices is made simple due to extra USB ports, I2C port, RS-232
serial port, 8 digital inputs, 8 digital outputs and 4 analog inputs. Open
physical design allows easy access to connectors. CoroBot's processor is
powerful enough to run additional user software. Supporting a 40G disk drive,
CoroBot has plenty of space to store data files, programs, source code etc.</font></p>
<p align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Capable</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Windows CoroBots are provided with a C-language API services for all onboard devices.
Microsoft Robotics Studio is still open sourced, so you are able to download and install it yourself if you desire. Additionally, an application to tele-operate your CoroBot right out of the
box is provided. The drivers and applications are provided in both source
and executable form allowing for immediate usage as well as modifications
and enhancements by the owner. CoroBot's camera, wheel encoders, and front bumper sensors
enable your robot to examine the environment, and the optional 4 degree of
freedom arm with gripper sensor enables your robot to easily interact with
the environment. Want to add autonomy? CoroBot's processer has the room to
handle localization and mapping algorithms, path planning, vision processing,
learning algorithms and more. Rather than being limited by flash memory space
CoroBot provides ample disk space to store maps, log files, learning databases
and more.</font></p>
<p align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Afforable</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
CoroBot offers a combination of features at a price lower
than anyone else in the industry. This price difference
becomes even more significant when multiple CoroBots
are needed for activities such as swarming or classroom
activities.</font></p>
<p align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">The CoroBot Base includes:</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
CoroBot with base options <br>
640x480 Camera<br>
Front bumper sensors
<br>
1.5 Ghz CPU<br>
Battery Charger<br>
AC Power Supply</font></p>
<table width="100%" border="1" cellpadding="1" cellspacing="0" bordercolor="#666666">
<tr>
<td colspan="5" bgcolor="#333333"><div align="center"><font color="#FFFF00" size="2" face="Arial, Helvetica, sans-serif">CoroBot
Specifications</font></div></td>
</tr>
<tr>
<td width="20%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td width="29%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12 x 13 x 10 in (16in w/ arm)</font></td>
<td width="2%" rowspan="12" bordercolor="#000000">&nbsp;</td>
<td width="27%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Bumper Sensors </font></td>
<td width="22%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Front
(standard) and Back (optional) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">CPU</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.5 Ghz</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Voltage Sensor</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RAM</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1 GB </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Arm Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">14
in long</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Disk
Space/ROM</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">80 GB</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Arm DOF</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Battery</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">10 AH</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gripper Span</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.3
in</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Est.
Battery Life</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.5 Hours</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gripper Sensor</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Base
Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">See Base Options </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Arm Payload Capacity</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8
oz</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Steering</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">See Base Options </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Base Payload Capacity</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5
lbs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Wheel
Encoders</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Windows</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">XP, Supporting C-Language API </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Camera</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">640x480 Color</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Linux</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Ubuntu, supporting C-language API and Player </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Digital Inputs</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Optional Pan/Tilt Camera </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Digital
Outputs</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Optional AMD Processor </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
</table>
<p><font color="ff0000" size="2" face="Arial, Helvetica, sans-serif"><strong>Your CoroBot will ship 6-8 weeks after we receive your order. US shipping is $125 and international shipping is $500.</strong></font></p>

CoroBot
CoroBot was created to minimize the complexity of robot development. By combining a powerful PC-class platform with a robust, object-oriented software development system, the CoroBot empowers you to rapidly deploy and develop robotics solutions.

$2874.00
Robot MarketPlace - CoroBot

Robot Kits
    CoroBot


Click photo to enlarge.

CoroBot
Part# CB-COROBOT


No reviews yet.

$2874.00
This Product Has Been Discontinued
Stock Status: Removed
