Robot MarketPlace - DeWalt 36V Hammerdrill Motor

Motors
Dewalt Motors

Click photo to enlarge.

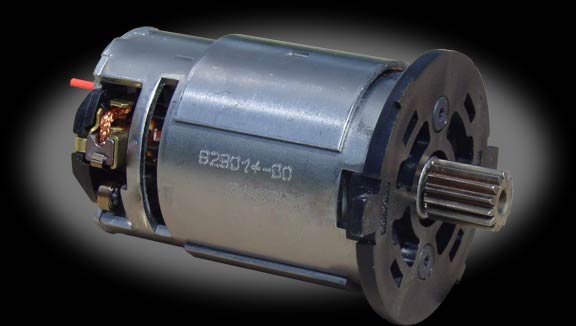

DeWalt 36V Hammerdrill Motor
Part# BP639521-00

Please see this product on the new Robot MarketPlace web site. Click here

Approximately 1hp max output @ 36VDC
15600 RPM @ 36V
Voltage Constant = 520 rpm/V (forward)(475 rpm/V (reverse))
Torque Constant = 2.6 oz-in/amp
Stall current: 300 amps
Length: 3.125 inches
Diameter: 2.0 inches
Pinion gear: 14 tooth, 13mm diameter
Weight: 1.78 lb
Shaft: 5 mm, with non-standard-pitch 14 tooth pinion
Size: 50 mm diameter, ~84 mm long without shaft
Mounting: 4x M4 on 33 mm bolt circle

Click here to add your own review or comment for this product.

5/10/2013

Delay

Powerfull

Excellent choice for those who want to make a 60 lbs fighting robot. Much more torque than the Dewalt 18V New Style. Good head option for high torque applications

6/12/2009

Thomas Sawyer

The perfect DeWalt!

First test: Great. Really great!
Comment: If you want both torque and horsepower buy this! After I tested it the first time I overvolted it and compared to the first test I didn't think there could be a more efficient brushed mot but I was wrong now the readings my lazer Dyno gives me are 4 times those as high as those I got when it was box stock!

Other products you may be interested in:

DeWalt 36V 3-Speed Gearbox
