Robot MarketPlace - BlinkRC WiFi RC Receiver v2.0

BG-BlinkRC BlinkRC WiFi RC Receiver v2.0 <div id="wrap"><div id="video1">
<font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><a rel="#voverlay" href="http://www.youtube.com/v/mzO1vYwZfDE?autoplay=1&rel=0" title="BlinkRC WiFi RC Receiver - The Robot MarketPlace"><img src="videos/data/thumbnails/BG-BlinkRC.jpg" alt="BlinkRC WiFi RC Receiver - The Robot MarketPlace" /></a></div></div><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">BlinkRC is the smallest, most-capable WiFi remote control receiver. A tad larger than a pack of gum, with BlinkRC you can control most any RC car, plane, or boat with your smart phone or PC. If you're not satisfied with our custom controllers, create your own controller using BlinkRC's open communications protocol.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features & Specifications:</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
802.11b/g/n connectivity<br />
Onboard low-profile WiFi chip antenna<br />
Onboard U.FL-R-SMT-1 external WiFi antenna connector<br />
Infrastructure or Ad-Hoc Modes<br />
Transmit range up to 330' depending on environmental / antenna considerations<br />
Requires 4vdc to 6vdc regulated input (typically from ESC)<br />
Six (6) Dynamically User Configurable Channels supporting these modes:<br />
   Servo/ESC control output<br />
   WiFI Digital Output<br />
   0-5v WiFi Analog Input channels with 8-bit resolution<br />
   0-1.1v WiFi Analog Input channels with 8-bit resolution<br />
Up to 50hz send and receive message rate (faster available special order)<br />
FREE download of <a href="http://itunes.apple.com/hk/app/blinkrc/id399310451?mt=8">iPhone controller app</a><br />
FREE download of <a href="http://www.robotmarketplace.com/products/images/BG-BlinkRC_pcapp.zip">PC compatible controller app</a><br />
FREE download of Droid controller app <font color="ff0000">(coming soon)</font><br />
FREE download of Blackberry controller app <font color="ff0000">(coming soon)</font><br />
Dimensions: 2.8" (L) x 1.0" (W) x 0.25" (H)<br />
Weight: Approximately ~4oz<br />
I/O Six (6) Channels Universal/Futaba J Style Connectors .1" 3 Pin Headers</font></p>
<div id="video1">
<div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><a rel="#voverlay" href="http://www.youtube.com/v/jOnd_7vylYU?autoplay=1&rel=0" title="BlinkRC Latency Test - The Robot MarketPlace"><img src="videos/data/thumbnails/BG-BlinkRC-latency.jpg" alt="BlinkRC Latency Test - The Robot MarketPlace" /></a></font></div>
</div>

BlinkRC WiFi RC Receiver v2.0
BlinkRC is the smallest, most-capable WiFi remote control receiver. With BlinkRC you can control most any RC car, plane, or boat with your smart phone or PC.

$149.95

Electronics
RC Receivers - WiFi

Click photo to enlarge.

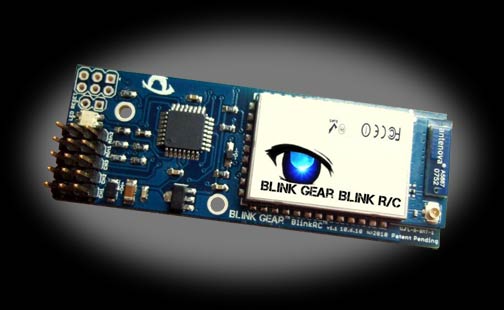

BlinkRC WiFi RC Receiver v2.0
Part# BG-BlinkRC

(average customer rating)

$149.95

This Product Has Been Discontinued

Stock Status: Removed

General Product Information

Other Documentation

Reviews & Comments

BlinkRC WiFi RC Receiver - The Robot MarketPlace

BlinkRC is the smallest, most-capable WiFi remote control receiver. A tad larger than a pack of gum, with BlinkRC you can control most any RC car, plane, or boat with your smart phone or PC. If you're not satisfied with our custom controllers, create your own controller using BlinkRC's open communications protocol.

Features & Specifications:
802.11b/g/n connectivity
Onboard low-profile WiFi chip antenna
Onboard U.FL-R-SMT-1 external WiFi antenna connector
Infrastructure or Ad-Hoc Modes
Transmit range up to 330' depending on environmental / antenna considerations
Requires 4vdc to 6vdc regulated input (typically from ESC)
Six (6) Dynamically User Configurable Channels supporting these modes:
   Servo/ESC control output
   WiFI Digital Output
   0-5v WiFi Analog Input channels with 8-bit resolution
   0-1.1v WiFi Analog Input channels with 8-bit resolution
Up to 50hz send and receive message rate (faster available special order)
FREE download of iPhone controller app
FREE download of PC compatible controller app
FREE download of Droid controller app (coming soon)
FREE download of Blackberry controller app (coming soon)
Dimensions: 2.8" (L) x 1.0" (W) x 0.25" (H)
Weight: Approximately ~4oz
I/O Six (6) Channels Universal/Futaba J Style Connectors .1" 3 Pin Headers

BlinkRC Latency Test - The Robot MarketPlace

Click here to add your own review or comment for this product.

7/11/2011

yirong

BlinkRC

Hi, after i have test the servo motor with a new BlinkRC, it works. However, when i tested it with channel 2, it no longer works. Then I test it with channel 1 again, it doesn't work anymore. Thus, I hoped you can solve my problem. Thank You.

6/10/2011

Sparrow

Great

Great little servo commander... Good company to do business with. Thanks

5/21/2011

Jim

Works, but check your ESC's voltage

The BlinkRC works as advertised, but watch out for ESCs that provide more than 5.5 V. The EVX-2 ESC in my E-Maxx provides 6.01 V. The BlinkRC ran fine, but that voltage is out of spec.

I have three complaints about the BlinkRC:

1) The BlinkRC does not have separate inputs for servo power and logic power. If you want to run your servos at 6 V, for example, you either need to run the BlinkRC outside its specified voltage range, or make a wiring harness that provides 6 V directly to your servos.

2) The A/D voltage range (0 to 20 V) is mentioned only on the BlinkRC web page, not in its documentation. The device's specifications should be included in the documentation.

3) The A/D inputs have voltage dividers that reduce the voltage by a factor of four, converting the 0-20 V input to 0-5 V. That's fine if you are using an A/D to measure the battery voltage, but results in very low resolution if you are measuring 0-5 V inputs. A jumper to bypass the voltage division would be a welcome change.

The BlinkRC is great for people who just want to run their RC car from their phone. I'm using mine for robotics, so my project's needs are a bit more unusual.

5/9/2011

mike

Finally! WiFi servo controls!

This baby is tiny! And, they include sample applications for the iPhone and the PC. I've tested it out of the vehicle and it seems to work well so far. It'll take me a bit before I've got it mounted in a robot. So, I'll update the review when I get more experience with it.
