AME-218-1002 AME 218-series 24V 212 in-lb LH gearmotor - stubby shaft <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This is a 24V version of our popular 218-1001 AME motor. Perfect for small to mid-sized robot drive applications. 2.55 lbs.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="3"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Clockwise Motor Shaft Rotation </font></td>
</tr>
<tr>
<td><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Data Point </font></div></td>
<td><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Data Type </font></div></td>
<td><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Value Range </font></div></td>
</tr>
<tr>
<td rowspan="2"><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No Load </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current (A) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.9 - 0.7 </font></div></td>
</tr>
<tr>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Speed (rpm) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">116.2 - 95.1 </font></div></td>
</tr>
<tr>
<td rowspan="2"><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Load </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Torque (Nm) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">21.3 - 17.5 </font></div></td>
</tr>
<tr>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current (A) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">13.0 - 14.7 </font></div></td>
</tr>
<tr>
<td rowspan="2"><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Peak Power </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power (W) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">60.0 - 49.1 </font></div></td>
</tr>
<tr>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Torque (Nm) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">11.1 - 9.1 </font></div></td>
</tr>
<tr>
<td rowspan="4"><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Nominal<br />
Peak Efficiency)</font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power (W) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">36.5 Nominal </font></div></td>
</tr>
<tr>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Speed (rpm) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">82.1 Nominal </font></div></td>
</tr>
<tr>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current (A) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.5 Nominal </font></div></td>
</tr>
<tr>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Torque (Nm) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.3 Nominal </font></div></td>
</tr>
<tr>
<td colspan="3"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Counter-Clockwise Motor Shaft Rotation </font></td>
</tr>
<tr>
<td><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Data Point </font></div></td>
<td><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Data Type </font></div></td>
<td><div align="center"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Value Range </font></div></td>
</tr>
<tr>
<td rowspan="2"><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No Load </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current (A) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.8 - 0.7 </font></div></td>
</tr>
<tr>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Speed (rpm) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">113.5 - 92.9 </font></div></td>
</tr>
<tr>
<td rowspan="2"><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Load </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Torque (Nm) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">20.6 - 16.9 </font></div></td>
</tr>
<tr>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current (A) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">17.9 - 14.6 </font></div></td>
</tr>
<tr>
<td rowspan="2"><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Peak Power </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power (W) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">55.5 - 45.4 </font></div></td>
</tr>
<tr>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Torque (Nm) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">10.5 - 8.6 </font></div></td>
</tr>
<tr>
<td rowspan="4"><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Nominal<br />
(Peak Efficiency)</font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power (W) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">34.3 Nominal </font></div></td>
</tr>
<tr>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Speed (rpm) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">79.6 Nominal </font></div></td>
</tr>
<tr>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current (A) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.7 Nominal </font></div></td>
</tr>
<tr>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Torque (Nm) </font></div></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.2 Nominal </font></div></td>
</tr>
</table>

AME 218-series 24V 212 in-lb LH gearmotor - stubby shaft
Perfect for small to mid-sized robot applications.
$70.99
Robot MarketPlace - AME 218-series 24V 212 in-lb LH gearmotor - stubby shaft

Motors
    AME Motors

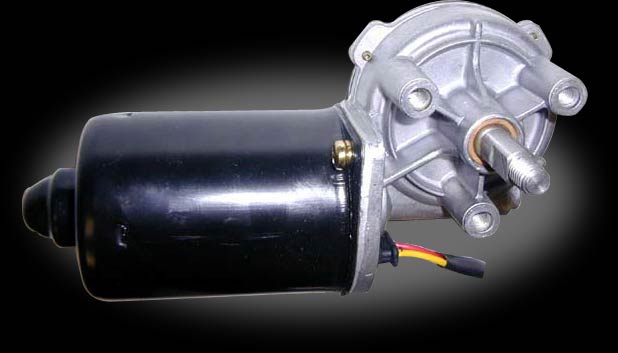

Click photo to enlarge.

AME 218-series 24V 212 in-lb LH gearmotor - stubby shaft
Part# AME-218-1002
