4QDW-DCI-111 4QD DCI-111 Dual Channel Interface
<p align="left"><font face="Arial, Helvetica, sans-serif" size="2"> <font color="00ff66">This
unit has two modes (selectable by on-board links): Independent (or
'tank style') and Differential (or 'Speed and Steer' mode). It can
also be used in other applications of course.</font></font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The
DCI -111 is meant to be operated by joystick or potentionmeter, this
is NOT an RC interface board.</font></p>
<p align="left"> <font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">&bull; Input

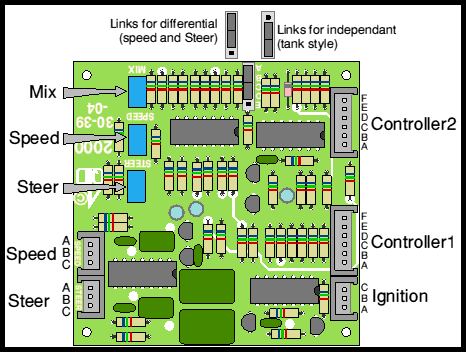

(LHS on <a href="http://www.robotmarketplace.com/images/4QD_dc111.gif">diagram</a>) 2 off 3 way connector
for two standard 10K pots (not supplied).<br>
&bull; Mix control adjusts steering sensitivity. (Control does nothing in independent
mode)<br>
&bull; Speed adjustment: alters accel and decel rate on both channels (controller
2 only in independent mode)<br>
&bull; Steer adjustment. Controls maximum change rate on steering, both channels
(controls accel/decel rate on controller 1 in independent mode).<br>
&bull; Speed zero and steer zero. Allow electrical compensation for small mechanical
errors.<br>
&bull; Pin strip and pluggable links change mode from Independent to Speed an
Steer.<br>
&bull; 6 way connectors (2 off on RHS) for pin-to-pin connection with two NCC
controllers.<br>
&bull; 3 way connection for ignition switch and battery condition meter.<br>
&bull; Where a standard dual axis joystick is not used, inputs can be operated
from standard 10K potentiometers. The board will give about 4v output for about &plusmn;40&deg; to
suit a standard servo.<br>

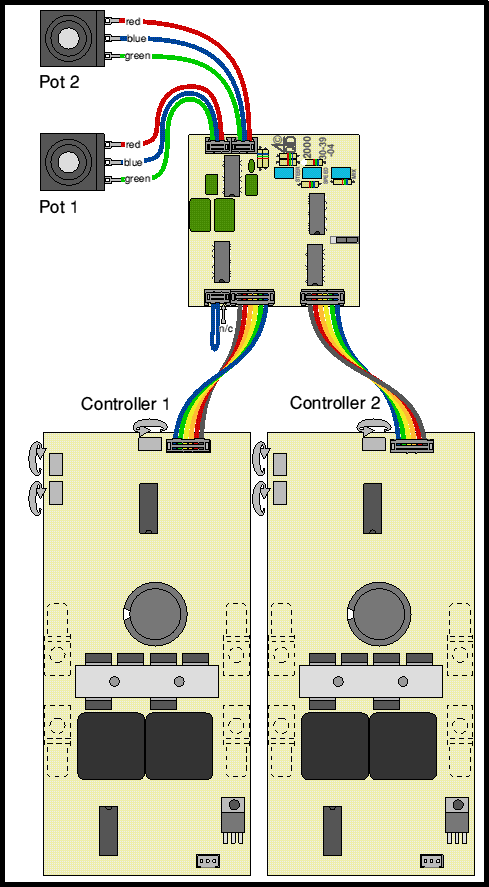

&bull; Simple wiring to <a href="http://www.robotmarketplace.com/images/4QD_DCi.gif">two controllers</a> <br>
&bull; The board can be manufactured with altered performance or tailored to
individual requirements.<br>
&bull; For the more technical browser, the circuit diagrams of some of these
interfaces are available in our circuits section, with full descriptions.<br>
&bull; An application note is available discussing the <a href="http://www.4qd.co.uk/serv/appnotes/dcinrm.html">use
of DCI-111 with non-reversing controllers</a>. </font></p>
<table width="95%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td width="17%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating
Voltage </font></td>
<td width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12-36V
DC </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.19 x 3.15&quot; </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.85 oz </font></td>
</tr>
</table>

4QD DCI-111 Dual Channel Interface
DCI-111 Dual Channel Joystick Interface for use with 4QD speed controllers.

$39.00
Robot MarketPlace - 4QD DCI-111 Dual Channel Interface

Electronics
    4QD Electronic Interfaces

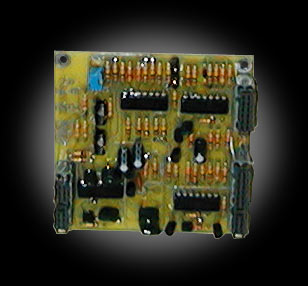

Click photo to enlarge.

4QD DCI-111 Dual Channel Interface
Part# 4QDW-DCI-111


No reviews yet.

$39.00
This Product Has Been Discontinued
Stock Status: Removed
