4QD-POT-050 50 degree 10K pot

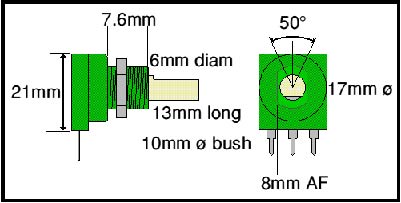

<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">It is a 'standard' 10K pot (i.e. with 300 degrees of mechanical travel) but with the active part of the track (i.e. the pactiula resistive track) occupying only the center 50 degrees of the mechanical travel.
<br><br>
It has a 6mm diameter shaft and is normally used in our <a href="4QD-BNL-103.html">Fingertip throttle mechanism</a>. <br><br>
It is not recommended for operation from radio control servos which require a track of more than 90 degrees!

50 degree 10K pot
This is a special 10K potentiometer with a 50 degree active resistive track length.

$7.00
Robot MarketPlace - 50 degree 10K pot

Electronics
    Electronics - Misc


Click photo to enlarge.

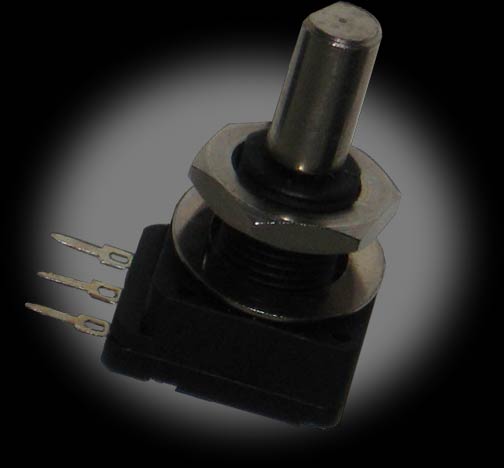

50 degree 10K pot
Part# 4QD-POT-050




Please see this product on the new Robot MarketPlace web site. Click here









Other products you may be interested in:
Fingertip Throttle Mechanism
