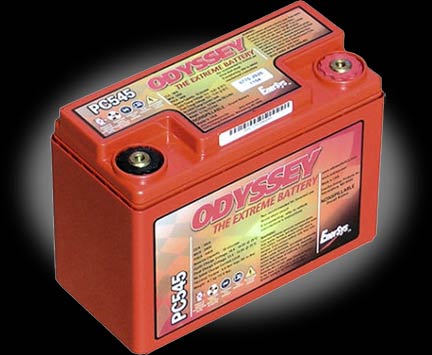

0B-PC545MJ Odyssey PC545MJ 12V 14AH SLA Battery <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Some batteries provide enormous cranking power. Others, deep cycle reserve power.
The revolutionary Odyssey battery is designed to do both. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Odyssey battery ingeniously uses absorbed glass mat (AGM) technology to
offer, in one box, the characteristics of two separate batteries. It can deep
cycle as well as provide enormous cranking power. These batteries make use of
fine mat separators (glass fiber) wherein sufficient electrolyte is absorbed
to provide the longest life and steady service. This system prevents escape
of electrolyte from the separator which causes leakage.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This battery includes a metal jacket. The metal jacket is needed if it's being
mounted near heat to protect the plastic of the battery from swelling. The
lead plates are under much higher pressure than a lead acid battery and if
the plastic heats up, the plates will want to expand outward which can ruin
the battery if it doesn't have a jacket.</font></p>
<table width="100%" border="1" cellpadding="1" cellspacing="0" bordercolor="#666666">
<tr>
<td width="34%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Capacity</font></td>
<td width="33%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">14AH</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Voltage</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12.0 V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cranking
Amps for 5sec</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">545</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cranking
Amps for 10sec</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">495</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cranking
Amps for 20sec</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">420</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cold Cranking Amps</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">185</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Short
Circuit Current</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">over
1200A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Reserve
Capacity with 25A Load</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">18min</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7.0
x 3.38 x 5.13</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12.6
lbs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Terminal Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">M6
Female</font></td>
</tr>
</table>
