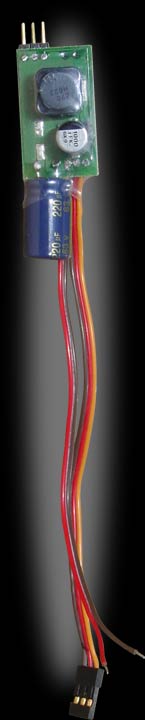

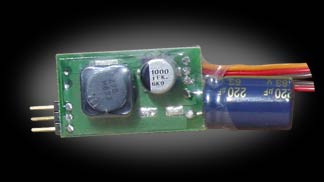

0-VHVBEC Very High Voltage Switch-Mode BEC <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimension Engineering's Very High Voltage BEC is the world's first BEC compatible
with input voltages as high as 60V/14s lithium. It can power your receiver
and servos with up to 2.5A. VHVBEC is especially well suited for high voltage
helicopters running 4 high speed/torque digital servos. Installing and using
VHVBEC is much more convenient than monitoring and recharging a receiver pack.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">VHVBEC's output is selectable between 5V/6V using a small slide switch. The
6V setting gives more speed and torque to the servos and is especially useful
for helicopter flyers. A red LED indicates when 6V is selected. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">As with all of Dimension Engineering's BEC products, VHVBEC has been carefully
designed and tested to ensure it does not create radio interference. You can
use it without fear of glitching. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">When used with non-optoisolated speed controls, VHVBEC has a handy throttle
pass-through feature that allows you to install it without cutting up your
ESC's wires.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">When used with optoisolated speed controls, VHVBEC installs easily by plugging
it into the battery port of your receiver.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">VHVBEC is targeted towards customers who will be flying with very high voltage
battery packs. If you do not anticipate flying with battery packs above 8s
then SportBEC might be all you need.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">For best results, ensure that your VHVBEC is installed at least 2 inches away
from your receiver and antenna.</font></p>
<p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Specifications</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Input
voltage</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">9V
to 60V</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Output
Current</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.5A</font></td>
</tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Output
Voltage</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5V-6V selectable</font></td>
</tr>

<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.6
oz (17g)</font></td>
</tr>
</table>
