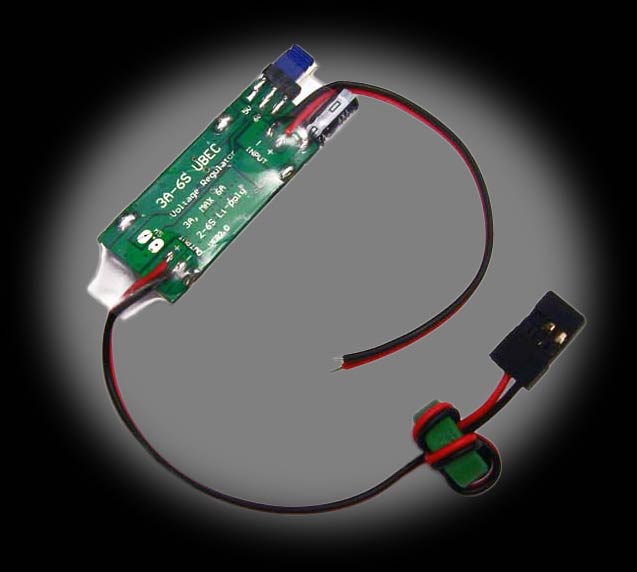

0-UBEC-3A UBEC 3 Amps <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This high-quality 3A UBEC switching DC-DC regulator is used when your ESC doesn't have a BEC or when your onboard BEC won't handle your needs. When supplied with a 2-6 cell lithium battery (or 5-18 cells NiMH /NiCd ), it outputs consistent, safe voltage for your receiver, gyro and servos. Provides much greater power efficiency than a linear mode UBEC.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Designed with an advanced switch mode DC-DC regulator IC.<br />
The output is powerful even working with 4 to 6 cells lipo batteries.<br />
Battery polarity reversal protection.<br />
A metal shield covers almost all the electronic components, and a specially made filter is attached with output wires to significantly reduce the electromagnetic interference.<br />
The working status is shown by an indicator (LED), lights when the output is in normal range.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Output Voltage: 5V@3A or 6V@3A (Changeable with an output-voltage select switch)<br />
Continuous output current: 3 Amps<br />
Input: 5.5V-26V (2-6 cells lithium battery pack or 5-18 cells NiMH /NiCd battery)<br />
Size: 43 x 17 x 7mm<br />
Weight: 11g</font></p>
