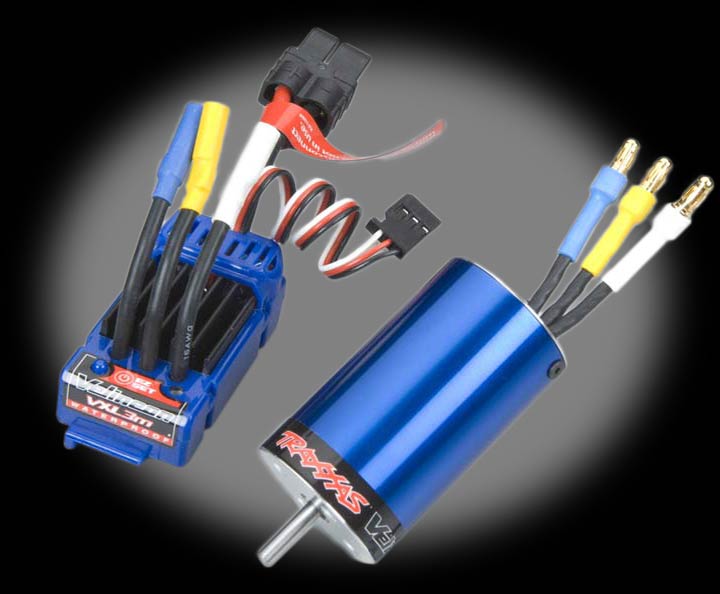

0-TRA3370 Traxxas 3370 Velineon VXL-3m Extreme Brushless Power System <p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Ultra high temp sintered neodymium motor magnets<br />
Balanced rotor<br />
High speed ball bearings<br />
Low voltage detection<br />
Traxxas high current connectors<br />
16-gauge wire</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">VXL-3m Specs </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6-12 Cells NiMH<br />
2S to 3S LiPo</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motors</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Sensorless Brushless </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motor Limit </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">None</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">52A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Peak Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">326A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">BEC Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6.0V DC </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Transistor Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">MOSFET</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">On-Resistance</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.0005 ohms </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">PWM Frequency </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12000Hz</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">38g (1.34oz) </font></td>
</tr>
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Velineon 380 Specs </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Sensorless Brushless </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RPM/Volt</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4000 (8-turn) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current Ratings </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">25A Continuous<br />
50A Burst</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Max RPM </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">50000</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">140g (4.94oz) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">48.15mm (1.9in) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">28mm (1.1in) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.7mm (0.11in) </font></td>
</tr>
</table>
$139.99
