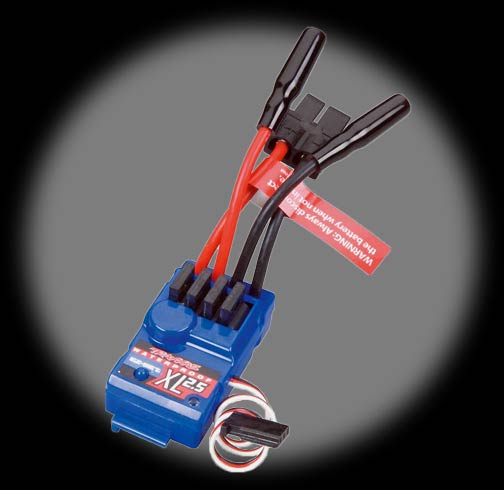

0-TRA3024 Traxxas XL 2.5 Electronic Speed Control, Waterproof: 1/16 <p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Simple one-button setup<br />
Patent-pending training mode<br />
Forward/Reverse/Brake<br />
Microprocessor control<br />
Waterproof design<br />
Efficient low-loss MOSFET design<br />
Traxxas high-current connector<br />
Thermal shutdown protection</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motors </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brushed</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motor Limit </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">10-turn (380 size) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">BEC Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6.0V DC </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Transistor Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">MOSFET</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">On-Resistace</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.008 ohms </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">PWM Frequency </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2300Hz</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motor/Battery Wiring </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">16 gauge </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Thermal Protection </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Thermal Shutdown </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motor Connectors </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Bullet Connectors </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4-8 cells (4.8V to 9.6V DC) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.16 oz (33g) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.83 in. (46.5mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.04 in. (26.5mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.85 in. (21.6mm) </font></td>
</tr>
</table>
