Traxxas 3018R Waterproof XL-5 ESC Low Voltage Detection
Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor.

$59.99
Robot MarketPlace - Traxxas 3018R Waterproof XL-5 ESC Low Voltage Detection
CLOSE X
Loading Image...

Electronics
    Car Speed Controllers


Click photo to enlarge.

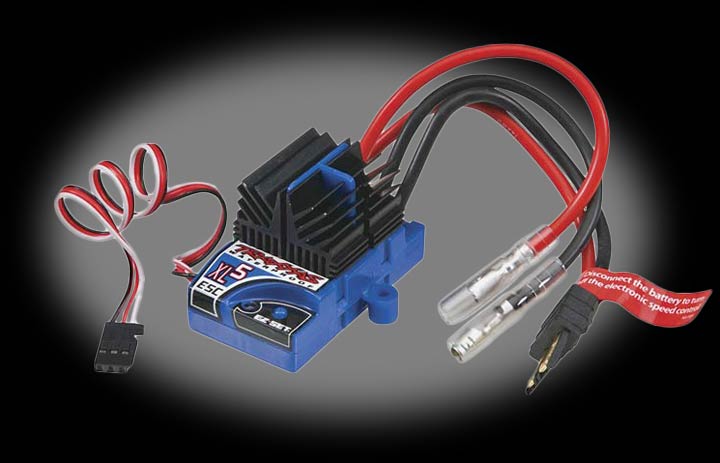

Traxxas 3018R Waterproof XL-5 ESC Low Voltage Detection
Part# 0-TRA3018R




Please see this product on the new Robot MarketPlace web site. Click here








General Product Information
Other Documentation
Reviews & Comments

Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, Thermal Shutdown Protection, 4-8 cell compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patent pending Training Modeª. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation. XL-5 is equipped with two-stage low-voltage detection (LVD) to allow LiPo battery use. The XL-5 is manufactured by Traxxas to ensure the highest level of quality and support. The XL-5 is backed by the Traxxas Lifetime Electronics Warranty.

Patent-Pending Training Mode
An exclusive feature that places the XL-5 ahead of the pack is the patent pending Training Mode. This feature reduces the overall power output of the XL-5 by 50% making it easier for new drivers to control their model. When they're ready, simply change profiles to unleash full-throttle action. Only Traxxas has it!

Programmable with three drive profiles:
Sport Mode - Fwd / Brake / Rev
Race Mode - Fwd / Brake
Training Mode - 50% Fwd / Brake / 50% Rev

Features
Built-in two-stage low voltage detection (LVD)
for Lithium Polymer (LiPo) battery use
Innovative watersealed design
15-turn motor limit for 540 size motors
12-turn motor limit for 550 size motors
Fully-proportional forward, reverse, and braking control
EZ-Set¨ push-button setup
Multi-color LED
Thermal shutdown protection
Efficient, low-loss MOSFET design
High-capacity heat sink
Smooth, high-frequency operation
Easy installation in Traxxas models
Backed by the Traxxas Lifetime Electronics warranty

Specs
Input Voltage 4-8 Cells (4.8 to 9.6 VDC)
Case Size 1.23 x 2.18 x 0.61 in
Weight 2.44 oz
Motor Limit 15-Turn (540-size)
12-Turn (550-size)
On Resistance Forward 0.007 Ohms
On Resistance Reverse 0.014 Ohms
Peak Current - Forward 100A
Peak Current - Reverse 60A
Braking Current 60A
Continuous Current 14A
BEC Voltage 6.0 VDC
BEC Current 1A
Power Wire 14 gauge, 5in.
Input Harness Wire 26 gauge, 9in.
Transistor Type MOSFET
PWM Frequency 1600 Hz
Low Voltage Detection 2-Stage indicators, switchable (on or off)
Thermal Protection Thermal shutdown
Profile Selection Sport Mode - 100% Fwd / 100% Brake / 100% Rev
Race Mode - 100% Fwd / 100% Brake / No REV
Training Mode - 50% Fwd / 100% Brake / 50% Rev

Note: Not compatible with the Novak #5470 2C LiPo Cut-Off Module.
