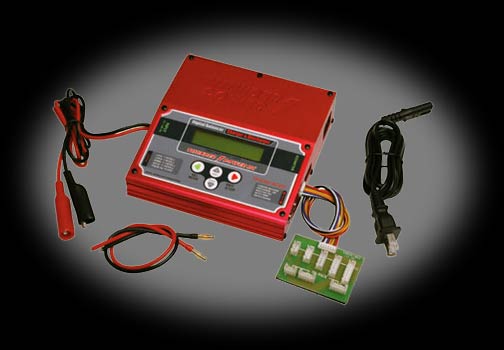

The Thunder Power RC TP610C-ACDC charger is the long-anticipated and fully integrated AC/DC version of the popular TP610C. The built-in AC power supply allows the charger to be easily and conveniently powered from a 100-240V outlet while the included DC input power leads can be connected to 12V lead-acid/gel cell batteries for charging at the flying field or outdoor track. The TP610C-ACDC also includes all of the same great features of the TP610C including the ability to charge, discharge and cycle a wide variety of 1-6S LiPo, LiIon and LiFe (A123) batteries, as well as 1-14 cell NiCd and NiMH along with 6-12V Pb (lead-acid) batteries. The built-in LiPo/LiIon/LiFe cell balancer and included balance connector adapter board are readily compatible with all Thunder Power balance connectors and the JST-XH balance connectors found on most other brand batteries. Other great features include an attractive and extremely durable aluminum case, plus the ability to charge at class-leading rates up to 10 amps and to install free firmware updates available from the ThunderPowerRC.com web site.
Features
-Unique all-in-one charger, discharger and cycler with built-in LiPo/LiIon/LiFe (A123) cell balancer that offers maximum safety, performance and easy-to-see individual cell voltages
-The included balance connector adapter board allows the built-in balancer to be used with Thunder Power-compatible balance connectors as well as the JST-XH balance connectors found on many other brand batteries from Align, Dynamite, E-flite, ParkZone and more
-Built-in, 100-240V-compatible AC power supply with a conveniently removable input power cord
-Charges and discharges 1-6 cell LiIon/LiPo/LiFE (A123), 1-14 cell NiCd/NiMH and 6-12V Pb (lead-acid) batteries
Up to 60% more charging power (80 watts) than other similar class chargers with selectable charge rates from 0.1 amp up to a class-leading 10 amps in 0.05-amp increments
-The perfect choice for ultra-fast charging at rates up to 2C+ for popular-sized slow flyer, park flyer and 5000mAh Race series batteries
-User selectable LiPo/LiIon/LiFe (A123) charge voltage cutoffs (50% storage, 95% and 100%) including ÔCompetition Car ModeÕ to achieve the maximum ROAR-approved voltage levels when racing
Easy-to-read back-lit LCD screen designed and optimized to prevent permanent ÔfadingÕ even when used in high temperature environments
-25 user-programmable memory slots to minimize the time it takes to set the proper cell counts and charge/discharge rates for your most commonly used batteries
-Free firmware updates can be downloaded (using PGM-V2) from www.ThunderPowerRC.com when new features, battery chemistry and other updates are made available
Specs |
Type |
AC/DC Charger |
Input |
100-240V AC or 11-18V DC |
Number of Cells |
1-6S LiPo/LiIon/LiFe (A123)
1-14 cell NiCad/NiMH
6-12V Pb (lead acid) |
Peak |
Adjustable Delta peak values for NiCad/NiMH charging |
Charge Rate |
Adjustable from 0.1 to 10 amps in 0.05 increments |
Output Connector |
Standard/4mm banana plugs |
Discharge |
Adjustable current rates and voltage cutoffs for LiPo/LiIon/LiFe (A123) cells |
