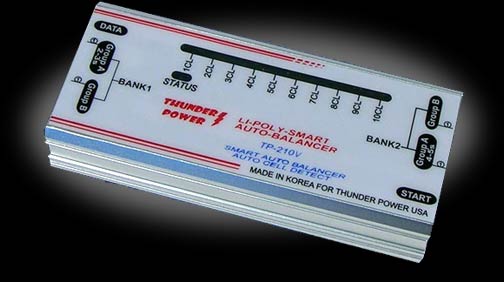

0-THP210 THP210 Thunder Power 2-10 Cell LiPo Balancer <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The TP-210 employs advanced balancing technology to actively balance Lithium
Polymer betteries, thus making charging much safer. When used in concert with
the TP-1010C charger, a &quot;closed loop&quot; system is formed to make the safest method
available for charging Lithium Polymer batteries. </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features:</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Auto cell-count detection for 2- to 10-cell Li-Po packs<br>
LEDs indicate balance status<br>
Alarm sounds to indicate overvoltage and other warnings<br>
Automatically balances packs with or without charging<br>
Data port interfaces with Thunder Power brand chargers</font></p>
<table width="100%" border="1" cellPadding="0" cellSpacing="0" bordercolor="#999999">
<tbody>
<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Balance
Cells</font></div></td>
<td><div align="left">
<p><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">2
to 10 cells in series</font> </div></td>
</tr>
<tr>
<td> <div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Balance
Start Voltage</font></div></td>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">4.1V
or 3.2V for &gt;0.03V imbalance</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Bleeding
Current</font></div></td>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Max
450mA</font></div></td>
</tr>

<tr>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Imbalance
Control Voltage</font></div></td>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">+/-
0.005V</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Under
Voltage Warning</font></div></td>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">3.3V
+/- 0.01V</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Over
Voltage Warning</font></div></td>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">4.3V</font></div></td>
</tr>

<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Full
Charge Indicator</font></div></td>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">One
or more cells at 4.2V and all others within 0.01V</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></div></td>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">4.0
x 1.72 x 0.72 in. </font></div></td>
</tr>
<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></div></td>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">4.5
oz.</font></div></td>
</tr>
</tbody>
</table>
