0-TEKTT2501 Tekin Pro4 4000kV Brushless SC Motor <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Tekin's Pro4 Motors set a new standard for 4 Wheel Drive Short Course performance. Utilizing the proven design of the T8 1:8th Scale motor, the Tekin Pro4 produces the torque and smooth power you demand for a 4x4 Short Course Truck. Specifically designed with a KV range to complement 2S LiPo power systems, no other 10th scale motor on the market can deliver the power needs your 4x4 Short Course requires. Get a Tekin Pro4 Motor and never look back.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
4 pole 12 slot high torque design<br />
High RPM ABEC5 oversized bearings<br />
CMC machined 6061 T6 billet aluminum heatsink can<br />
Neodymium sintered magnets<br />
Designed to handle 2S LiPo batteries<br />
Dual plug sensor wire harness for use with all sensored and sensorless systems<br />
High purity copper windings for greatest efficiency</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Weight: 6.75oz (193g)<br />
Shaft Dimensions: .60x .196" (15.3 x 5mm)<br />
Motor Diameter: 1.4" (35.8mm)<br />
Motor Length: 2.1" (52.9mm)<br />
Bearing Dimensions: Front: 5x13x4mm / Rear: 5x10x5<br />
Turns: 2D</font></p>

Tekin Pro4 4000kV Brushless SC Motor
Tekin's Pro4 Motors set a new standard for 4 Wheel Drive Short Course performance.

$149.99
Robot MarketPlace - Tekin Pro4 4000kV Brushless SC Motor

Motors
    Motors - Brushless

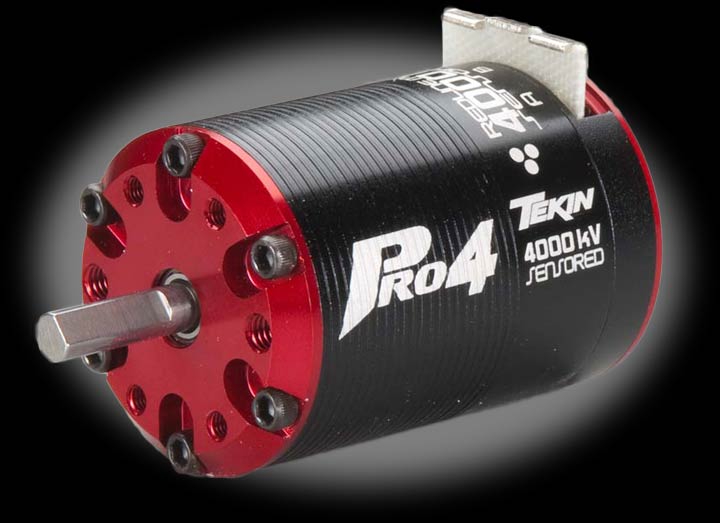

Click photo to enlarge.

Tekin Pro4 4000kV Brushless SC Motor
Part# 0-TEKTT2501
