Robot MarketPlace - RCE200 L RC Switch

These nifty devices let you turn something on and off from a regular R/C channel. They're lighter, faster and more reliable than using an R/C servo to knock into a microswitch. A DIP switch block provides four threshold positions to set the device trip point and an LED indicates the status of the link: unpowered, powered but no signal, valid signal but not active and activated. Microprocessor controlled and digitally filtered, the L-switch also employs fault detection to safely switch off the load if the receiver signal is lost, making it a true failsafe. The unit is powered entirely by the receiver, drawing only 13 ma. The switched load is electrically isolated from the R/C circuit, allowing two completely separate gounds to run without coupling noise between them.

This 'L' model replaces previous models RCE200A and RCE200B.

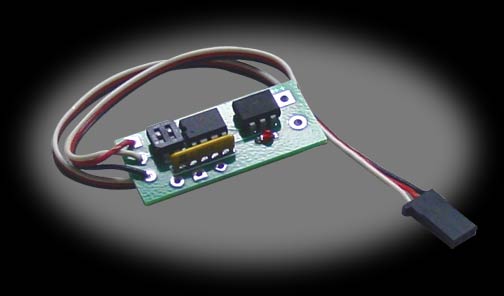

An RC Servo lead (10" long) is already soldered to this unit- you only need to solder on your input/output wires! Price reflects the addition of this servo lead. Connector is universal Futaba/JR style.

Do not exceed ratings, so choose your model carefully:

	L-Model
Max Load rating	5.0A
Max Switched Voltage	60V
Switch resistance	0.025 ohms
Width	0.6" (15mm)
Length	1.6" (41mm)
Weight	**
Supply voltage	3.8 - 5.5VDC
Supply current	13ma
Switching time	5 milliseconds

Click here to add your own review or comment for this product.

1/18/2011

Chaos2

Love these relay type devices

This is a great little device. Simple to set up and it's tiny. While I'm using it to turn on and off LEDs, I could have used another one to run my pump motor. I highly recommend this. I'm even more impressed with this one than the other relay I bought for my pump motor. Keep those great products coming.
