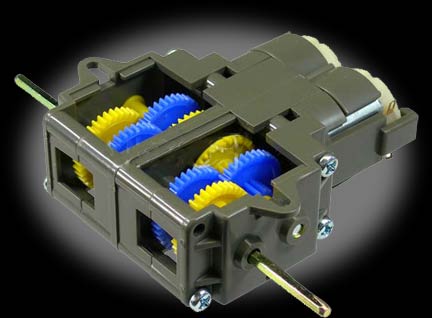

Offering a double gearbox perfect for use in amateur robot contests, this gearbox
is suitable for use with remote controlled robots. Choice of 4 gear ratios,
offers emphasis on speed or power to suit your needs. Left/right independent
design means you can set different gear ratios for either side.
Suitable for use with remote controlled robots.
Left/right independent design means you can set different gear ratios for either

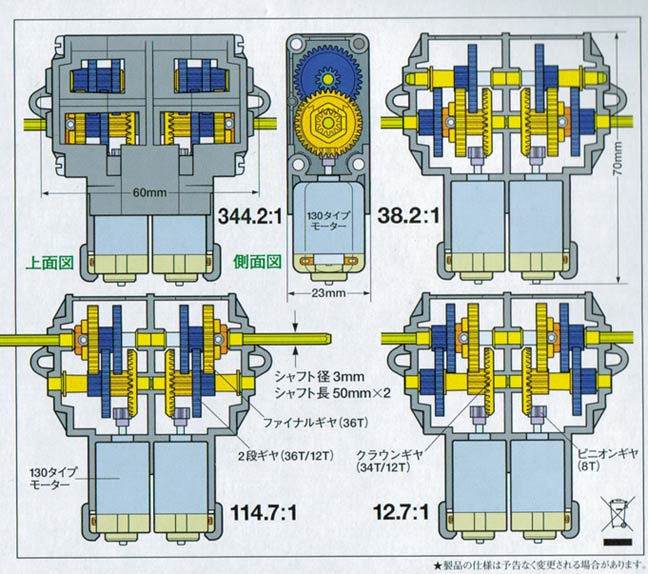

side. This set can be assembled for one of four different gear ratios: 12.7:
1, 38.2:1, 114.7:1, 344.2:1
Hexagonal shaft.
Motor cover and crank arm.
Durably molded gear box case, gears and pinion gears.
FA-130 type motor included with a torque of 3V.
Detailed assembly guide.
50mm shaft (3mm hex)
70 x 60 x 23mm
Operating Voltage: 3V
No-load Speed at 3V: 12300 rpm
No-load Current Speed at 3V: 150mA
Stall Current at 3V: 2100mA
Stall Torque at 3V: 0.5 oz-in
