Robot MarketPlace - Tamiya Ford F-350 Hi-Lift Kit

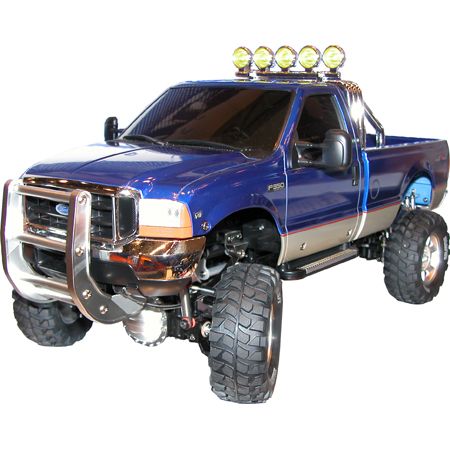

Tamiya Ford F-350 Hi-Lift Kit
Highly detailed injection molded body and large diameter wheels enhance the stylish high-ground-clearance look.

$489.99

One of the most representative American pickup trucks, the Ford F350, is available as an electric R/C assembly kit

The model features realistic ladder frame, 3-speed transmission and shaft drive 4WD system. Highly detailed injection molded body and large diameter wheels enhance the stylish high-ground-clearance look. Original marking stickers add to the truck?s overall realism.

METAL & METAL PLATED PARTS
An abundance of metal parts such as ladder frame, under guard, front guard, leaf springs and aluminum friction dampers are included.
Roll bar, road light, front grille, front/rear bumper, side-step, diff guard, wheels and muffler feature metal-plated finish.

ADD LED LIGHTS (SOLD SEPERATELY)
Use Multi-Function Unit TAM53957 to depict working headlights, tail lights and roll bar lights for even more incredible realism. (Multi-Function Unit is planned to include LED lights).

MULTI FUNCTION UNIT (TAM53957)
This Multi Function Unit will bring even more enjoyment to the operation of the R/C Ford F350. Featuring realistic sound effects recorded from actual vehicles, controllable LED lights and other movement effects, this unit will greatly expand the potential of your Ford F350.

LADDER FRAME
Durable and realistic ladder frame consists of steel channel and resin cross member.

PROPELLER SHAFTS
F/R propeller shafts feature universal joint to efficiently transmit power even if suspension is moving up and down.

QUICK BATTERY HOLDER
Battery held in low position for excellent weight balance and stability.
Easy access holder allows running battery to be exchanged without removing body.

4WS STEERING ROD
4 wheel steering can be enabled by adding kit supplied rear axle tension rod.
4-wheel steering enables even tighter turning radius, perfect when using truck indoors or in confined space.

WHEELS & TIRES
Newly designed monster truck tires feature lug pattern suited for driving on rough surfaces.
Apply cement to wheels and tires when running on rough terrain.
Worn out wheel hubs can be replaced with #53056 Pin type Wheel Adapter

3-SPEED TRANSMISSION
Newly designed 3-speed transmission provides
smooth low speed running, and allows gear
changing while running.
Low gear > 2nd gear > Top gear
1:64.39 > 1:35.20 > 1:21.14

SLIPPER CLUTCH
Includes slipper clutch as standard part to protect gears during tough off-road running.

DIFFERENTIAL GEAR
Durable resin gear case with integrated die-cast differential gear.

DIFFERENTIAL LOCK
Differential lock, essential for driving on rough roads, may be easily enabled by simply removing F/R diff case covers and removing screw pins.
By using differential lock, drive power is transmitted even if wheels on one side lose traction.

LEAF SPRING SUSPENSION
F/R suspension with friction dampers allows tension adjustment by altering number of leaf springs.

FRICTION DAMPERS
Features red anodized aluminum cylinder. Damping effect can be adjusted by applying separately available Friction Damper Grease and adding o-rings. Select according to ground conditions and leaf spring number.

BEARINGS
Kit includes a total of 42pcs of bearings (35pcs x 1150, 4pcs x 1260, 2pcs x 850 size metal and 1pc of 1050 size ball bearings).
Metal bearings require periodic application of grease to maintain performance. Separately available ball bearings do not require this treatment, and are highly recommended.

MOTOR
This kit is designed to be used only with pre-supplied type 540 motor and pinion gear.

REQUIRED ITEMS (NOT INCLUDED)
RADIO CONTROL UNIT TRANSMITTER, RECEIVER, ELECTRONIC SPEED CONTROLLER (ESC), STEERING SERVO & SHIFT SERVO
Requires 4-channel, 2-servo digital proportional R/C unit with electronic speed controller with variable forward and reverse function. The Airtronics VG400/600 model radios are capable as they feature slide trim and self neutral control sticks. 2ch R/C unit cannot be used as it cannot shift gears.
PCM type receiver may not be used as it may cause radio interference when using with separately available Multi Function Unit.

ELECTRONIC SPEED CONTROLLER
Use high power type ESC with reverse function (maximum continuous current: forward 120A, reverse 60A, FET regulation).
A high-spec ESC is especially recommended when running on rough terrain.
TEU-302BK Electronic Speed Controller (ITEM 45028) is recommended.
Not for use with TEU-101BK Electronic Speed Controller.

SERVO
While standard type steering servo is sufficient, high torque servo is recommended when running on rough terrain.
Use of ITEM 50473 High Torque Servo Saver White or ITEM 51000 High Torque Servo Saver Black will further improve efficacy.
Do not use small, large or high-speed servo.

BATTERIES
7.2V running battery
Eight R6/AA/UM3 batteries for transmitter.

Battery and Radio information
1. Any 7.2V battery can be used to power the vehicle. Different mAh batteries effect the amount of running time. For example, 7.2V 1400SP battery should normally enable 10 to 15 minutes of running time. However, please note that actual running time may decrease due to extended full throttle and other high power running.

2. A 4-channel R/C unit (self-neutral stick type transmitter/receiver) is recommended for optimum operation. The Airtronics VG400/600 model radios are capable as they feature slide trim and self neutral control sticks. Be aware that using an R/C unit without a self-neutral system may increase difficulty of operation. Without self-neutraling channels (spring loaded sticks) the operator is left to center the throttle and steering without the aid of self-centering springs, which makes driving the truck harder than it needs to be.

4-channel wheel-type transmitters can be used with ITEM 58372, but will not be able to be used with kit equipped with Multi-Function Unit (TAM53957).
