0-T40H-SM41 BaneBots Hex Hub - 4mm <div id="video1">
<a rel="#voverlay" href="http://www.youtube.com/embed/gh3tpvrkfU4?autoplay=1&rel=0&amp;color1=0x234900&amp;color2=0x4e9e00" title="BaneBots Wheel Installation - The Robot MarketPlace"><img src="http://www.robotcombat.com/products/videos/data/thumbnails/banebots_video.jpg" alt="BaneBots Wheel Installation - The Robot MarketPlace" /></a></div>
<br>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">

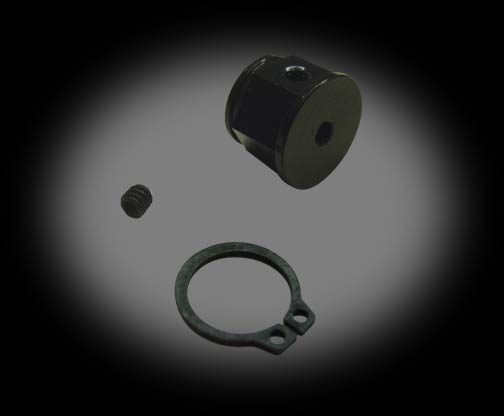

These hubs are designed to provide a simple, light weight, low profile mounting solution for BaneBots wheels with a 1/2&quot; hex mount. They are CNC machined Aluminum and feature a durable black oxide finish. The hubs are supplied with mounting hardware as pictured.
</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">
NOTE: you will need a 1/16&quot; hex wrench to tighten the set screw, and a pair of snap ring pliers to place the snap ring.
</font></p>
<table width="100%" border="1" cellpadding="0" cellspacing="0"><td colspan="2"><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Hub Specifications</font></div>
<tr><td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Mounting</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1/2in Hex</font></td>
</tr><tr><td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">For Shaft</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4mm</font></td>
</tr><tr><td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight*</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.15oz </font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">(4.3g)</font></td>
</tr><tr><td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Set Screw</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6-32 x 1/8in</font></td>
</tr><tr><td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Num Set Screws</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
</tr><tr><td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Snap Ring</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1/2in External</font></td>
</tr><tr><td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Material</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Aluminum</font></td>
</tr><tr><td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">*Weight includes hardware</font></td>
</tr></table>
</font></p>

BaneBots Hex Hub - 4mm
These hubs are designed to provide a simple, light weight, low profile mounting solution for BaneBots wheels with a 1/2" hex mount

$4.99
Robot MarketPlace - BaneBots Hex Hub - 4mm

Mechanical and Drive
    BaneBots Wheels


Click photo to enlarge.

BaneBots Hex Hub - 4mm
Part# 0-T40H-SM41
