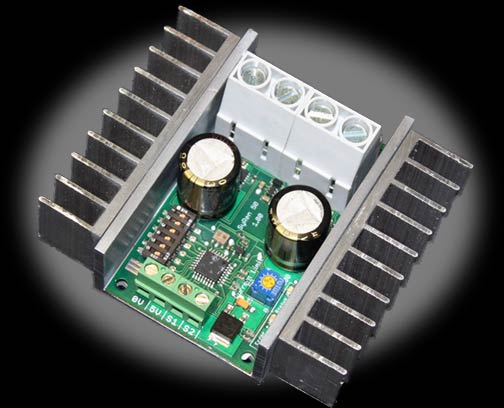

0-SYREN50 SyRen 50A Regenerative Motor Driver <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The SyRen motor driver is one of the most versatile, efficient and easy to use motor drivers on the market.

</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Out of the box, the SyRen 50 can supply a single DC brushed motor with up to 50A continuously. Peak currents of 100A are achievable for a few seconds. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Overcurrent and thermal protection means you'll never have to worry about killing the driver with accidental stalls or by hooking up too big a motor. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">With just one SyRen driver you can control a motor with: analog voltage, radio control, serial and packetized serial. You can build many different robots of increasing complexity for years to come with a SyRen. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The operating mode is set with the onboard DIP switches so there are no jumpers to lose. The SyRen features screw terminal connectors - making it possible for you to build a robot without even soldering. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">SyRen is the first synchronous regenerative motor driver in its class. The regenerative topology means that your batteries get recharged whenever you command your robot to slow down or reverse. SyRen also allows you to make very fast stops and reverses - giving your robot a quick and nimble edge. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">SyRen has a built in 5V BEC that can provide power to a microcontroller or R/C receiver. The lithium cutoff mode allows SyRen to operate safely with lithium ion and lithium polymer battery packs - the highest energy density batteries available. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">SyRen's transistors are switched at ultrasonic speeds (32kHz), meaning no one will be able to hear your robot ninja army approaching. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Use of motor drivers with cheap AC adapters is not recommended. Use a battery or at least put a battery in parallel with a DC supply.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Voltage
range</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">6-30V
input nominal, 33.6V max</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Current
handling </font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">50A
continuous, 100A peak</font></td>
</tr>

<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">3.0</font><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">&quot;
x 3.5&quot; x 1.3&quot;</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">6.2
oz (176g)</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Input
types</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Analog, RC, and Serial </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Number
of channels</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Synchronous
regenerative drive</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">yes</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Ultra-sonic
switching frequency</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">yes</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Thermal
and overcurrent protection</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">yes</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Lithium
protection mode</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
</table>
