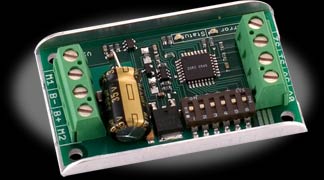

0-SYREN10 SyRen 10A Regenerative Motor Driver
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The SyRen motor driver is one of the most versatile, efficient and easy to
use motor drivers on the market. It is suitable for medium powered robots -
up to 30lbs in combat or 100lbs for general purpose robotics. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Out of the box, the SyRen 10 can supply a single DC brushed motor with up
to 10A continuously. Peak currents of 15A are achievable for a few seconds. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Overcurrent and thermal protection means you'll never have to worry about
killing the driver with accidental stalls or by hooking up too big a motor. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">With just one SyRen driver you can control a motor with: analog voltage, radio
control, serial and packetized serial. You can build many different robots
of increasing complexity for years to come with a SyRen. Owning two SyRens
allows you to build differential drive (tank style) robots because they can
work in tandem with built in mixing. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The operating mode is set with the onboard DIP switches so there are no jumpers
to lose. The SyRen features screw terminal connectors - making it possible
for you to build a robot without even soldering. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">SyRen is the first synchronous regenerative motor driver in its class. The
regenerative topology means that your batteries get recharged whenever you
command your robot to slow down or reverse. SyRen also allows you to make very
fast stops and reverses - giving your robot a quick and nimble edge.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">SyRen has a built in 5V BEC that can provide power to a microcontroller or
R/C receiver. The lithium cutoff mode allows SyRen to operate safely with lithium
ion and lithium polymer battery packs - the highest energy density batteries
available.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">SyRen's transistors are switched at ultrasonic speeds (32kHz), meaning no
one will be able to hear your robot ninja army approaching.</font></p>
<p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Specifications</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Voltage
range</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">6-24V
input nominal, 30V max</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Current
handling </font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">10A
continuous, 15A peak</font></td>
</tr>

<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">1.4&quot;
x 2.25&quot; x 0.55&quot;</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">0.9
oz (26g)</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Input
types</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Analog
(i.e. potentiometer), R/C input (radio receiver-no input cable included),
or serial (RS-232)</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Number
of channels</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">1</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Synchronous
regenerative drive</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">yes</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Ultra-sonic
switching frequency</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">yes</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Thermal
and overcurrent protection</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">yes</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Lithium
protection mode</font></td>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
</table>
