0-SWHELLA2 701 Contour Master Power Switch <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Need
a bigger, heavy duty switch for your current-hungry bot? This big boy
has a hard-to-miss large red knob with two positions, on and off (90 degrees
to each other). The knob is non-removable when in these positions, so
you don't need to fumble for special tools or a key. However, this switch
features a unique setup where you can remove the knob in the OFF position,
by pushing and twisting it 45 degrees CCW. This is the highest current-handling
switch we carry.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">- Continuous
rating: 275 amps<br>
- Intermittent Rating: 455 Amps<br>
- Crank Rating: 1250 Amps<br>
- Voltage Rating: 48 Volts<br>

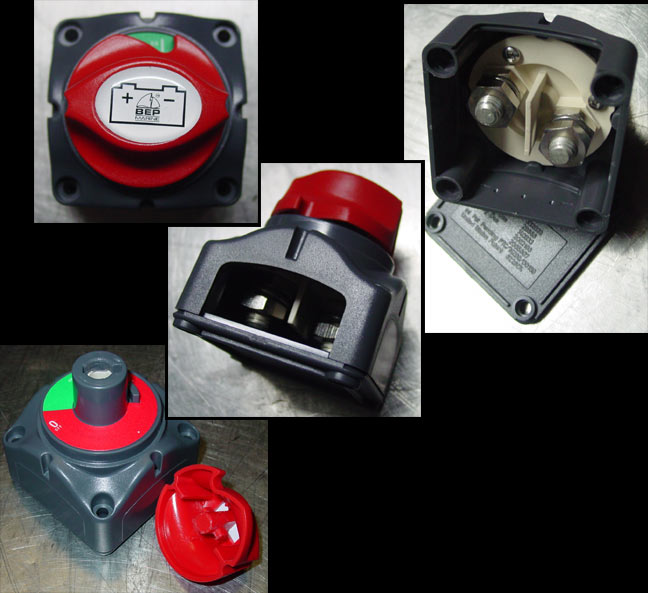

- Surface or Recess mount<br>
- Bring wires in from any of 4 sides<br>

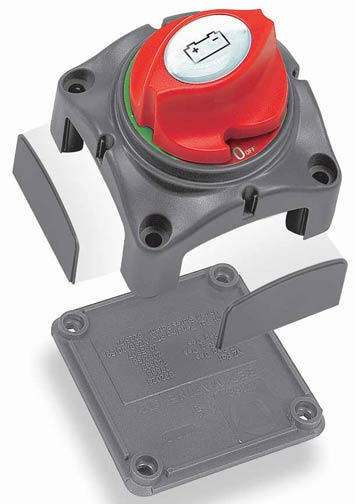

- Includes 3 removable side panels that can fit any of the sides<br>
- Bottom plastic panel to completely isolate all connections<br>
- 3/8&quot; tin plated copper studs and nuts <br>
- 2.75 x 2.75 x 3in.<br>
- Assembled weight: 7 oz</font></p>

701 Contour Master Power Switch
This is the highest current-handling switch we carry. Over 1200 amps!

$32.99
Robot MarketPlace - 701 Contour Master Power Switch

Electronics
    Power Switches


Click photo to enlarge.

701 Contour Master Power Switch
Part# 0-SWHELLA2




Please see this product on the new Robot MarketPlace web site. Click here
