0-SPMSS6040 Spektrum S6040 Digital High Speed Surface Servo <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The S6040 combines the impressive ultra fast .08-second transit time with 167 ounces of torque and titanium gears. The coreless motor allows for extended motor life and a smoother operation. This performance, along with the smooth precision of its dual ball bearing output shaft and titanium gears, makes it the ultimate upgrade. Along with the Z connectors, the S6040 servo allows for compatibility with JR and Spektrum receivers. This is the ideal servo for any vehicle enthusiast.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Ultra fast 0.08 second transit time with 166 oz-in of torque at 6v<br />
Precise digital control<br />
Coreless motor for extended motor life and provides smoother operation<br />
Dual ball bearings provide less resistance for higher performance and longer life<br />
Z connectors are compatible with JR and Spektrum receivers<br />
8 inch 22 guage wire<br />
Titanium gears for maximum durability and reliability<br />
Overload protection<br />
Mounting lug hight optimized for surface applications</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">40mm</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">20mm</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">37mm</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.8 oz. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Torque</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">167 oz-in. at 6V </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Speed</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.08 sec/60deg at 6V </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Bearing Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dual</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gear Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Metal</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motor Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Coreless</font></td>
</tr>
</table>

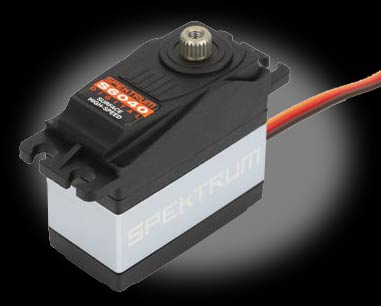

Spektrum S6040 Digital High Speed Surface Servo
The S6040 combines the impressive ultra fast .08-second transit time with 167 ounces of torque and titanium gears.

$69.99
Robot MarketPlace - Spektrum S6040 Digital High Speed Surface Servo

RC Gear
    Servos - Standard


Click photo to enlarge.

Spektrum S6040 Digital High Speed Surface Servo
Part# 0-SPMSS6040


No reviews yet - Add yours now!

Retail: $109.99

Our Price:

$69.99

This Product Has Been Discontinued
Stock Status: Removed
