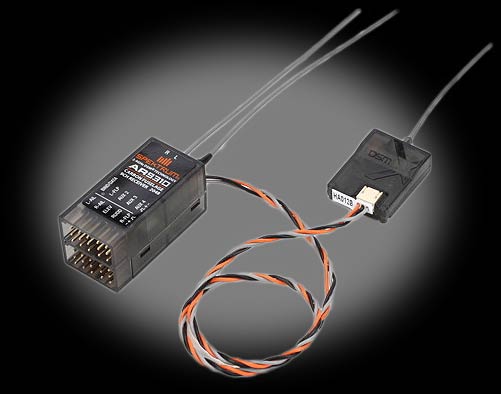

The Spektrumª AR9310 DSMX¨ 9-channel receiver is designed for carbon fiber fuselage installations. Carbon fiber can create an RF shielding effect that can significantly reduce radio range when using conventional receivers and antennas. The AR9310 receiver features an antenna design that overcomes RF issues in these critical environments.
Features
DSMX¨ technology
Feeder antennas offer superior RF coverage mounted on the outside of the fuselage
Streamlined case for installation versatility
DuaLink¨ technology
MultiLinkª technology
QuickConnectª
Molded antenna exit guides
Flight log compatible
Preset failsafe
Includes DVD installation and setup video
US patent 7,391,320
Specs |
Type |
DSMX Full Range Carbon Fuse Receiver |
Modulation |
DSM2/DSMX |
Band |
2.4GHz |
Antenna Length |
Rx: 203.2mm (2) Remote: 203.2mm (1) |
Number of Channels |
9 |
Voltage Range |
3.5 - 9.6V |
Size |
1.61 x 0.82 x 0.76 in. (40.8 x 20.8 x 19.3mm) |
Weight |
0.64 oz (18.2g) |
