0-SPMAR9110 Spektrum AR9110 9-Channel DSMX PowerSafe Receiver <p></font><p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><div id="wrap"><div id="video1">
<a rel="#voverlay" href="http://www.youtube.com/embed/dpXL3fAKcGc?autoplay=1&rel=0&amp;color1=0x234900&amp;color2=0x4e9e00" title="Spektrum Binding Process - The Robot MarketPlace"><img src="http://www.robotcombat.com/products/videos/data/thumbnails/spektrum_binding.jpg" alt="Spektrum Binding Process - The Robot MarketPlace" /></a></div></div>
The AR9110 PowerSafe™ receiver is designed for models using multiple servos that draw excess current or multiple high-torque servos, such as giant-scale airplanes and jet models. It features a robust power bus designed to manage high-current loads, as well as dual 16AWG battery input leads with EC3™ connectors for use with larger battery packs. This makes it possible to support high-current systems straight through the AR9110 receiver without the need for a separate power system. As an added measure of safety, the Spektrum brand designed the AR9110 receiver with a soft switch. Servo current is routed around the switch, so, should it fail for any reason, power to the system will not be interrupted.</font></p>

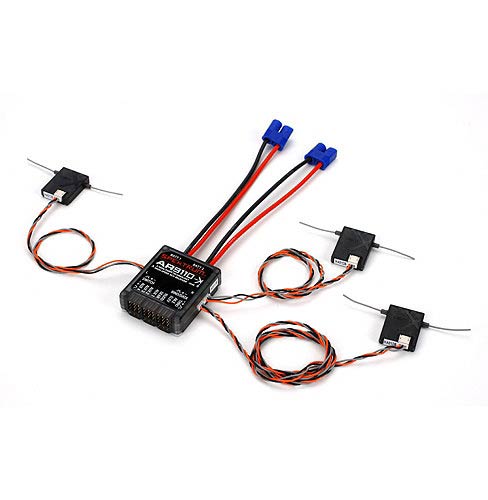

<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This unique receiver design contains a main unit which houses the power bus, and it includes 3 remote receivers which come with one of each: 9", 12" and 24" remote receiver extensions. The dual path redundancy of Spektrum patented DuaLink® technology, plus the fact each of the receivers is mounted in a slightly different location, exposes each to a different view of the RF environment and creates a bulletproof RF link in all conditions. You can add an optional <a href="0-SPM9645.html">fourth remote receiver</a> to further enhance the receiving capabilities of the system for more complex aircraft.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">In addition to Spektrum exclusive SmartSafe™ technology, the AR9110 receiver gives you the option of using standard user preset failsafe settings. It is also compatible with Spektrum optional flight log.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Robust power bus designed to manage high-current loads<br />
Dual 16AWG battery input leads with EC3™ connectors for use with larger battery packs<br />
Includes a soft switch that fails "on"<br />
Includes three remote receivers<br />
Features SmartSafe™ technology plus preset failsafe<br />
Compatible with all Spektrum™ and JR® full-range DSM2® and DSMX® radio systems<br />
Can add an optional fourth remote receiver (sold separately)<br />
Flight log compatible<br />
US patent 7,391,320</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Full Range Aircraft DSMX Receiver </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Modulation</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">DSM2/DSMX</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Band</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.4GHz</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Number of Channels </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">9</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Antenna Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Remote Receivers: 30mm (2) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Voltage Range </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6.0 - 10.0V </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.86 x 1.58 x 0.56 in. (47.3 x 40.2 x 14.2mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.2 oz (34g) </font></td>
</tr>
</table>

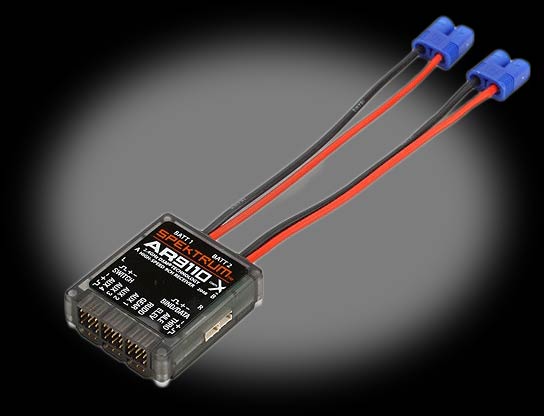

Spektrum AR9110 9-Channel DSMX PowerSafe Receiver
Featuring a robust power bus designed to manage high-current loads, as well as dual 16AWG battery input leads with EC3 connectors for use with larger battery packs.

$199.99
Robot MarketPlace - Spektrum AR9110 9-Channel DSMX PowerSafe Receiver

RC Gear
    RC Receivers - 2.4Ghz


Click photo to enlarge.

Spektrum AR9110 9-Channel DSMX PowerSafe Receiver
Part# 0-SPMAR9110
