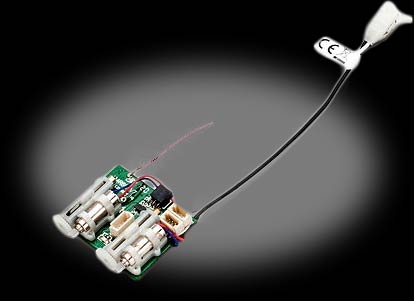

Spektrum's AR6410 is a 6-channel ultra-micro receiver with integrated servos, speed control and ParkZone's X-Port technology. The AR6410 is designed for ultra-micro and ultra light foamy aircraft. Featuring DSMX technology the AR6410 is compatible with all Spektrum, JR, E-flite, ParkZone 2.4GHz DSM2 transmitters.

Applications
The AR6410/AR6410L is designed for ultra micro aircraft and is ideal for scratc- -built ultra micro projects. The AR6410/AR6410L is designed to use a single cell LiPo battery. The integrated brushed speed controller can be used to power a brushed motor drawing up to 2 amps of continuous current or an optional brushless speed controller can be used. An integrated X-Port feature allows for future expansion. When X-Port is active, CH5 and CH6 are not available; however, reversed aileron (CH2) is still available.

Features
Two integrated linear servos (elevator and rudder) plus two additional servo ports
Compatible with optional Spektrum 1.5-gram linear ultra-micro servos SPMAS2000
Integrated brushed speed control
Compatible with external brushless speed controls (optional)
1mm JST connections
Weighs just 3.9 grams
Small, compact footprint
Single LiPo operation
Smart Bind� technology
X-Port allows for future expansion

Specs
Forward	Yes
Reverse	Yes
Brake	Yes
Auto Cutoff	Yes
Overload Protection	Yes
Programmable Low Voltage Cutoff	Yes
Continuous Current	3.0A
Maximum Burst Current	4.9A
Input Voltage	6.4 - 8.4V
PWM Frequency	1.5
BEC	Yes
BEC Type	4.2V
BEC Continuous Current	1A
BEC Maximum Burst Current	1A
Range	Park Flyer
Band	2.4GHz
Number of Channels	6
Model Type	Airplane

Note: The AR6410/AR6410L receiver is not compatible with the DX6 park flyer radio system.
