0-SPMAR6400 Spektrum AR6400 DSM2 6-Channel Ultra-Micro Receiver/ESC <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Spektrum's AR6400 is a 6-channel ultra-micro receiver with integrated servos, speed control and ParkZone's X-Port technology. The AR6400 is designed for ultra-micro and ultra light foamy aircraft. Featuring DSM2 technology the AR6400 is compatible with all Spektrum, JR, E-flite, ParkZone 2.4GHz DSM2 transmitters. </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Two integrated linear servos (elevator and rudder) plus two additional servo ports<br />
Compatible with optional Spektrum 1.5-gram linear ultra-micro servos SPMAS2000<br />
Integrated brushed speed control<br />
Compatible with external brushless speed controls (optional)<br />
1mm JST connections<br />
Weighs just 3.9 grams<br />
Small, compact footprint<br />
Single LiPo operation<br />
Smart Bind™ technology<br />
X-Port allows for future expansion</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">DSM2 micro receiver, two integrated linear servos, and an integrated brushed ESC </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Number of channels </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6 channels, or 4 plus X-port </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Modulation</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">DSM2</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Band</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.4GHz</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.92in. (23.45mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.09in. (27.75mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.32in. (8.10mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.14 oz (3.9g) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Voltage Range </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1-cell LiPo 3.2-4.2V </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Antenna Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">31mm</font></td>
</tr>
</table>

Spektrum AR6400 DSM2 6-Channel Ultra-Micro Receiver/ESC
Spektrum's AR6400 is a 6-channel ultra-micro receiver with integrated servos, speed control and ParkZone's X-Port technology.

$59.99
Robot MarketPlace - Spektrum AR6400 DSM2 6-Channel Ultra-Micro Receiver/ESC

RC Gear
    RC Receivers - 2.4Ghz

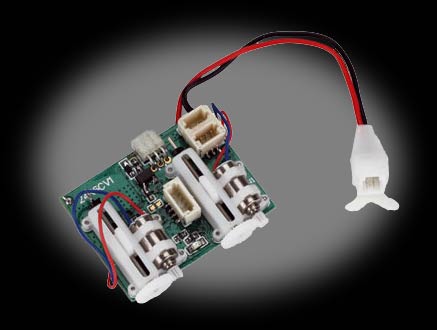

Click photo to enlarge.

Spektrum AR6400 DSM2 6-Channel Ultra-Micro Receiver/ESC
Part# 0-SPMAR6400


No reviews yet.

Retail: $79.99

Our Price:

$59.99

This Product Has Been Discontinued
Stock Status: Removed
