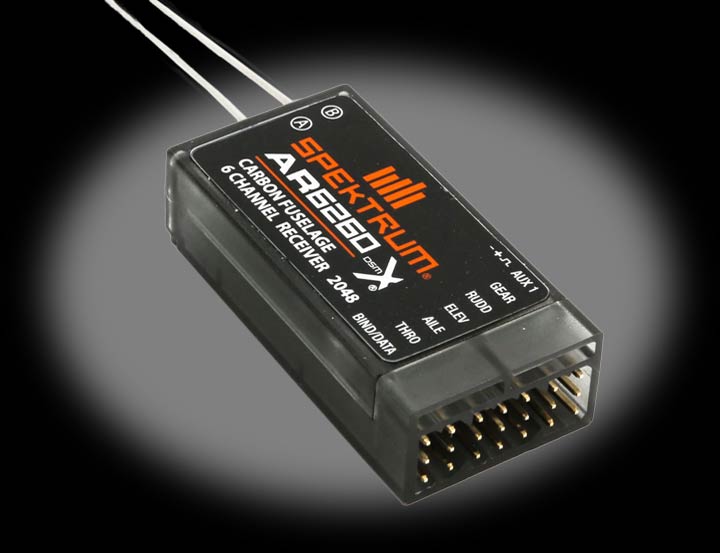

0-SPMAR6260 Spektrum AR6260 DSMX 6-Channel Carbon Fuselag Receiver <p></font><p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><div id="wrap"><div id="video1">
<a rel="#voverlay" href="http://www.youtube.com/v/dpXL3fAKcGc?autoplay=1&rel=0&color1=0x234900&color2=0x4e9e00" title="Spektrum Binding Process - The Robot MarketPlace"><img src="videos/data/thumbnails/spektrum_binding.jpg" alt="Spektrum Binding Process - The Robot MarketPlace" /></a></div></div>
The Spektrum™ AR6260 full-range receiver is specifically designed for carbon fiber fuselage installations. Carbon fiber can create an RF shielding effect that significantly reduces signal range when using conventional receivers and antennas. The AR6260 features a special antenna design that overcomes these RF limitations by letting you route the antennas through the side of the fuselage to the outside.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
6-channel receiver optimized for carbon fiber fuselage installations<br />
Narrow case design for sailplanes, hotliners and similar models<br />
Two 7-inch (186mm) coaxial antennas<br />
Two internal receivers for dual path diversity<br />
Preset failsafe on all channels<br />
QuickConnect™ technology<br />
2048 resolution<br />
Telemetry capable<br />
Flight Log compatible<br />
Includes lightweight polycarbonate case (Total receiver weight with polycarbonate case: 8.4 grams (0.3 ounces))</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Antenna Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7.3 in (186mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Band</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.4GHz</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Flight Log Compatible</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Model Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Airplane</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Modulation</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">DSM2/DSMX</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Number of Channels</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Range</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Full</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Resolution</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2048</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Telemetry</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Carbon fuselage receiver</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Voltage Range</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.5-9.6V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.9 in (47mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.9 in (23.5mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.5 in (12.8mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Plastic Case: 0.4 oz (11 g); Polycarbonate Case: 0.3 ounces (8.4 grams)</font></td>
</tr>
</table>
$79.99
Manual
